Ultimate GPS Breakout Ultra High Sensitivity GPS Engine Module SKM53 MTK3329

Features:

• Ultra high sensitivity: -165dBm
• Max Altitude: 18,000m
• Max Velocity: 515m/s
• Acceleration: Less than 4g
• 22 tracking/66 acquisition-channel receiver

• WAAS/EGNOS/MSAS/GAGAN support

• NMEA protocols (default speed: 9600bps)

• Internal back-up battery and 1PPS output

• One serial port and USB port (option)
• Mediatek MTK3329 chipset
• Pin Spacing: 2.0mm (can be used with 2mm header pins and pin adapter to fit in standard 2.54mm breadboards)

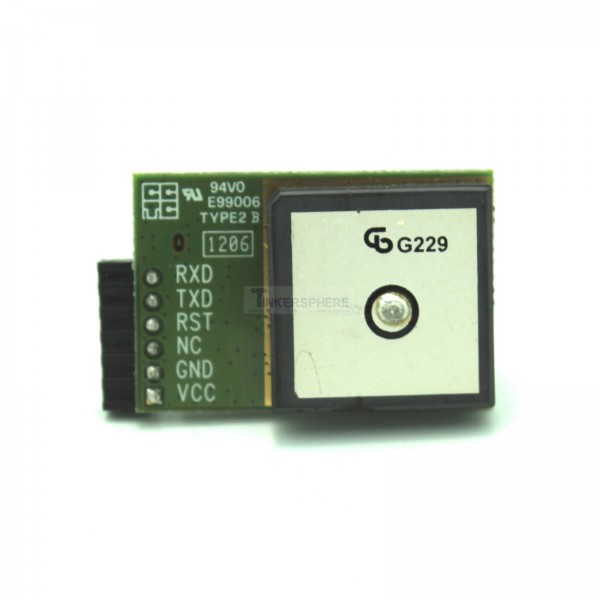

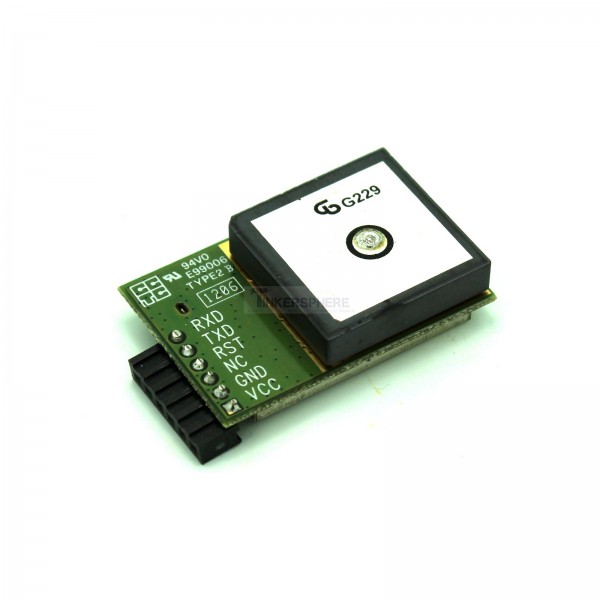

• Embedded patch antenna 18.2 x 18.2 x 4.0 mm

• Operating temperature range: -40 to 85

• RoHS compliant (Lead-free)
• Tiny form factor 30mm x20mm x 11.4mm

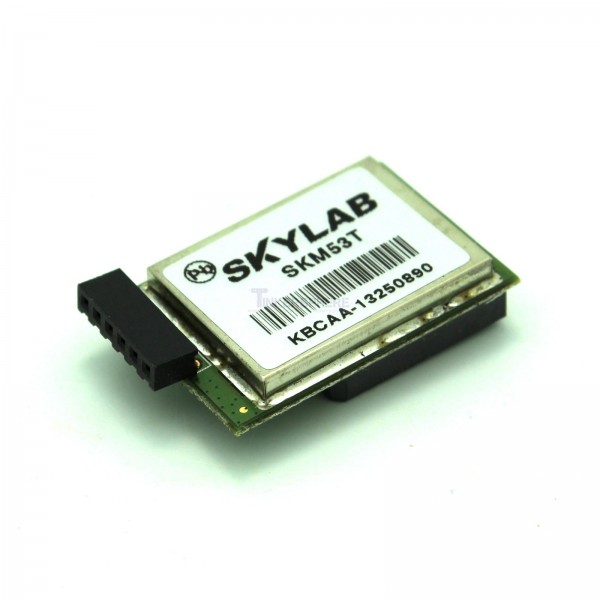

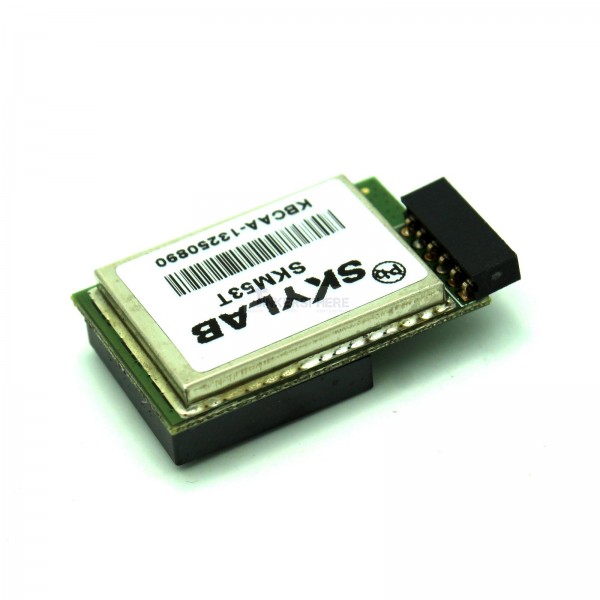

• Skylab SKM53 Series GPS module with embedded GPS antenna

• Enables high performance navigation in the most stringent applications

• Solid fix even in harsh GPS visibility environments
• Based on the high performance features of the MediaTek 3327/3329 single-chip architecture
• 165dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage environments where GPS was not possible before

• 6-pin and USB connector design is the easiest and convenient solution to be embedded in a portable device and receiver like PND, GPS mouse, car holder, personal locator, speed camera detector and vehicle locator.

Datasheet Download
