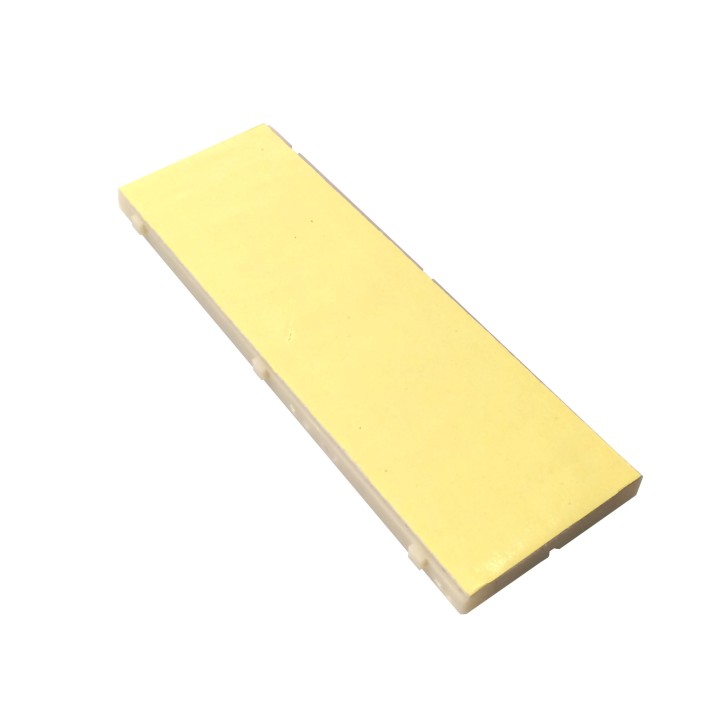

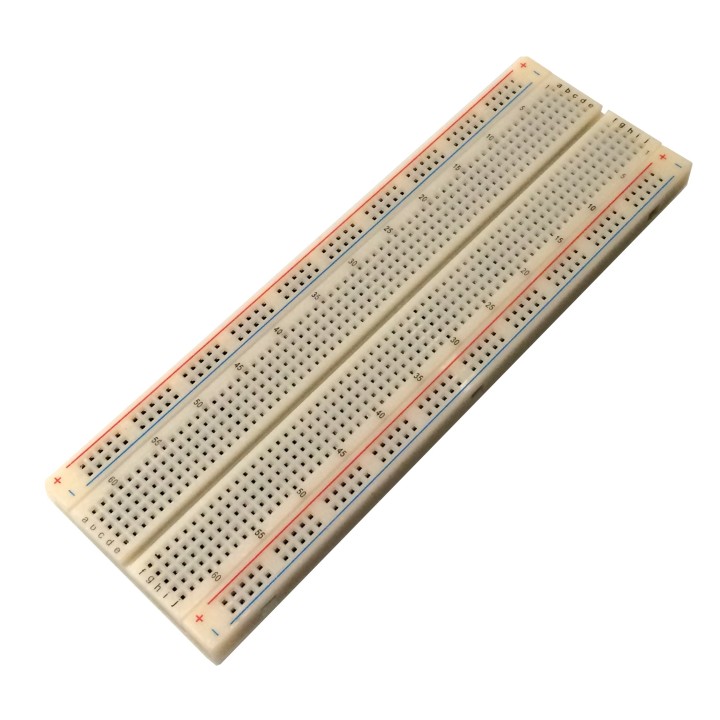

Full Size Breadboard 830 Tie Point

Plug some jumper wires into this full sized breadboard to quickly connect your circuits together. Modular design allows you to create any size breadboard by snapping these together.

More details

Availability: SHIPS TODAY

Last Updated: 12/20/2024

Tinkersphere

TS1094

$6.95

Have a question? 0 answered questions

Plug some jumper wires into this full sized 830 tie point breadboard to quickly connect your circuits together. Great for solderless circuit building. Just plug in the wires you want to connect and they'll be connected, simple and easy. These breadboards are modular so you can attach 2 or more breadboards to eachother to make larger sized ones. These also snap together with our Half Size 430 point breadboards and Mini Breadboards.

Specifications:

  • 830 tie points
  • 2 Power Strips (200 points each)
  • Dimensions: 16.5 x 5.5 x 0.85 cm
  • Optimal Wire Diameter: 20 - 29 AWG
  • Material: ABS housing & Nickel Phosphor Bronze Contacts
  • Max Voltage: 300V
  • Max Current: 3 - 5 A
  • Tie Point Spacing: 0.1" / 2.54mm
