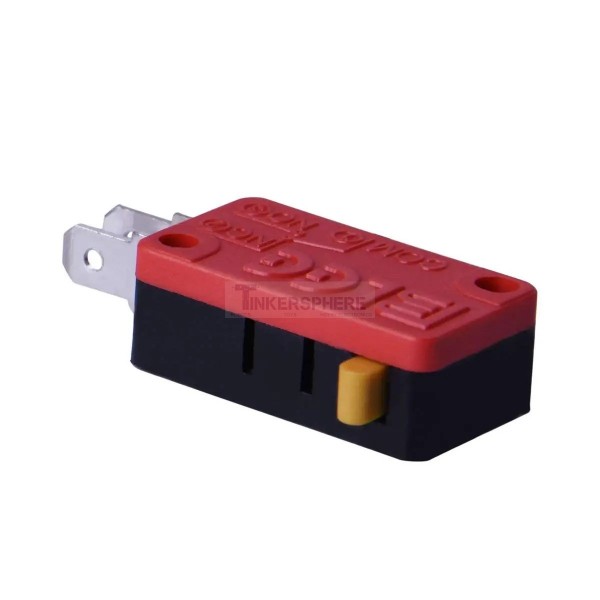

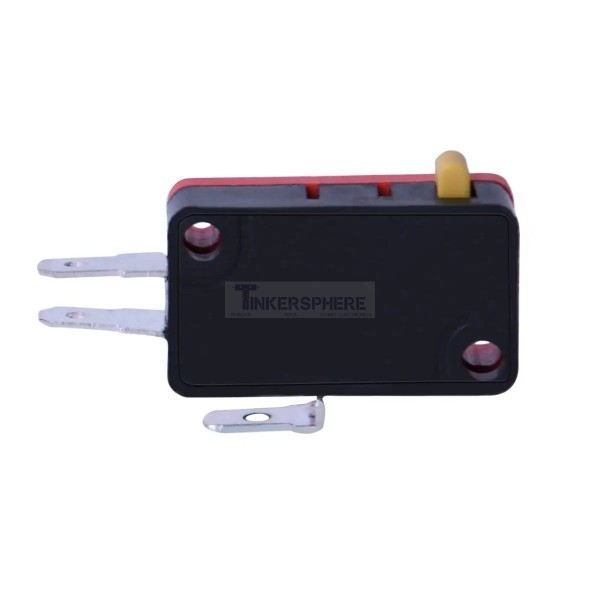

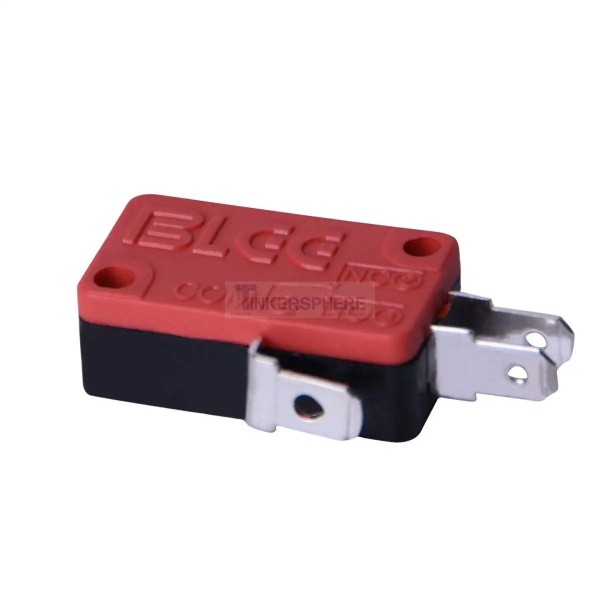

Micro Switch 3-Pin Microswitch Push Buttons HAPP Standard Arcade Mame Jamma Games

Micro switch small momentary button. 3 terminals: COM, NO, and NC Micro Switch 3-Pin Microswitch Push Buttons HAPP Standard Arcade Mame Jamma Games

More details

Availability: ✅SHIPS TODAY

Last Updated: 09/22/2026

Tinkersphere

TS4392

$1.49

Have a question? 0 answered questions

Features:

  • Micro Switch
  • 3 Terminals:
    • COM: common
    • NO: normally open
    • NC: normally closed
  • Maximum Amps: 15A
  • Maximum Volts: 250V
  • Momentary
  • SPDT Snap Action
  • Number of pins: 3
  • Suitable for HAPP Standard Arcade Mame Jamma Games. Replace your Mame cabinet arcade button switches with NO and NC connections easily by swapping the switch out if you have a 2 pin switch.

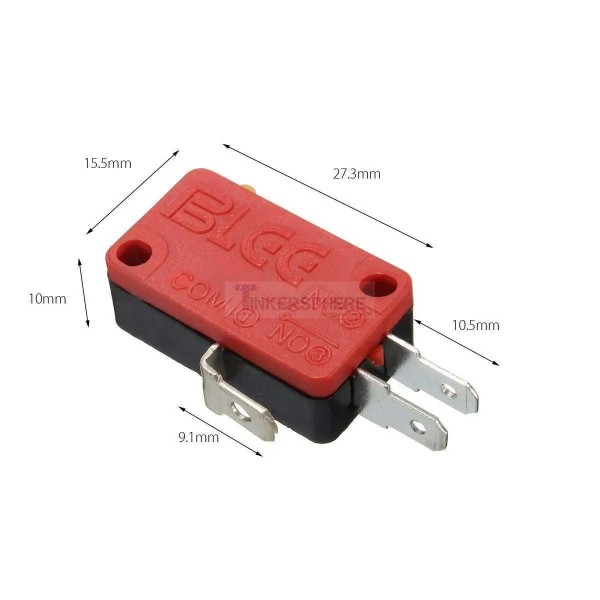

  • Dimensions:
    • Body Length: 1.07 inches
    • Body Width: 0.61 inches
    • Body Height: 0.39 inches
    • Bent Pin Length: 0.35 inches
    • 2 Straight Pin Lengths: 0.39 inches
