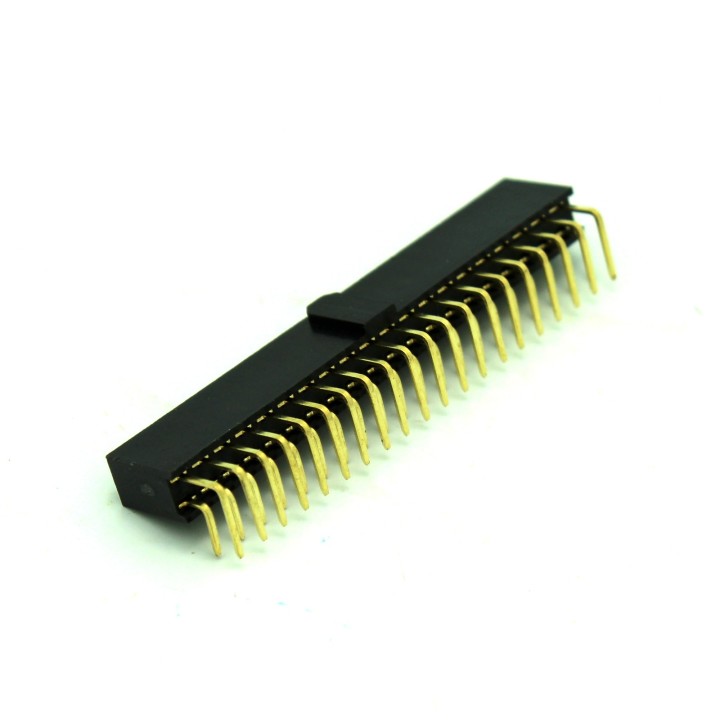

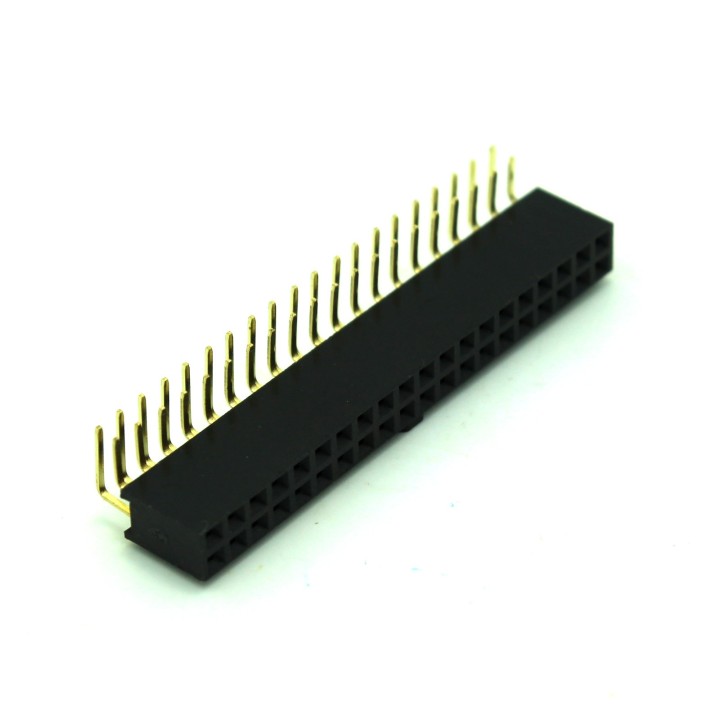

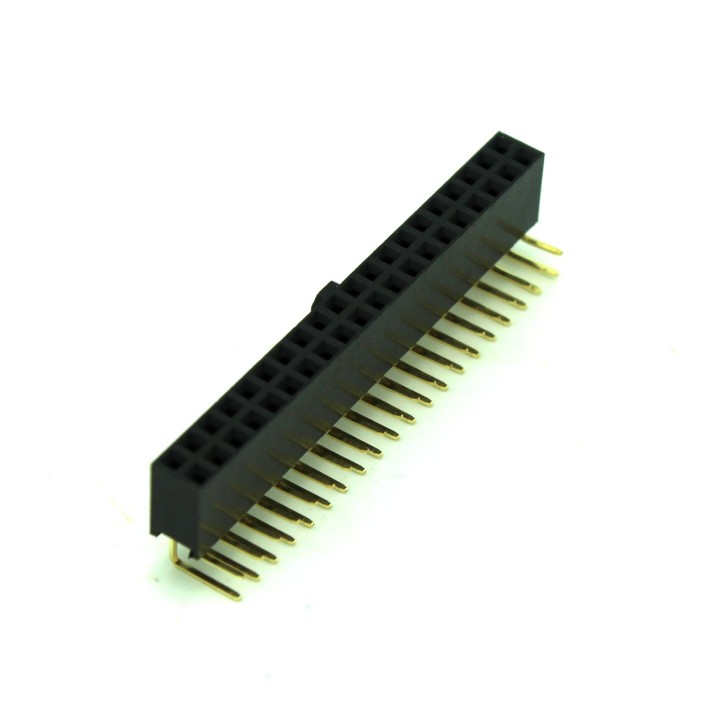

Right Angle 2x20 40 Pin Female Header 90 Degree Double Row

This 40 Pin Female Header contains 2 rows of 20 with pins at a 90 degree / right angle. Perfect for replacing the Raspberry Pi GPIO headers to female header pins or creating your own Pi plates / shields.

More details

Availability: SHIPS TODAY

Last Updated: 10/10/2024

Tinkersphere

TS4290

$2.99

This 2x20 40 Pin Female Header gives you 2 rows of 20 female header pins all neatly spaced and angled at 90 degrees / right angle. This can be used to convert your Raspberry Pi 2, A+ or B+ GPIO pins from male to female so it's easy to plug wires into the board directly off the side. Also commonly used to make your own Raspberry Pi extension connections as it mates perfectly with the Raspberry Pi's GPIO headers. Breadboard & Perfboard compatible.

Specifications:

  • Number of pins: 40
  • 2 Rows x 20 columns
  • Right angle / 90 Degree
  • Spacing: 0.1" (2.54mm)
  • Receptacle style: square
  • Receptacle Depth: ~0.24" (6mm)
  • With Polarizing Key so you know which direction to plug it in
  • Can be used in conjunction with our Breakaway Male Header Pins (row of 40).
  • Pin Depth into PCB when soldered: 3mm
  • Plastic Height: 8mm
