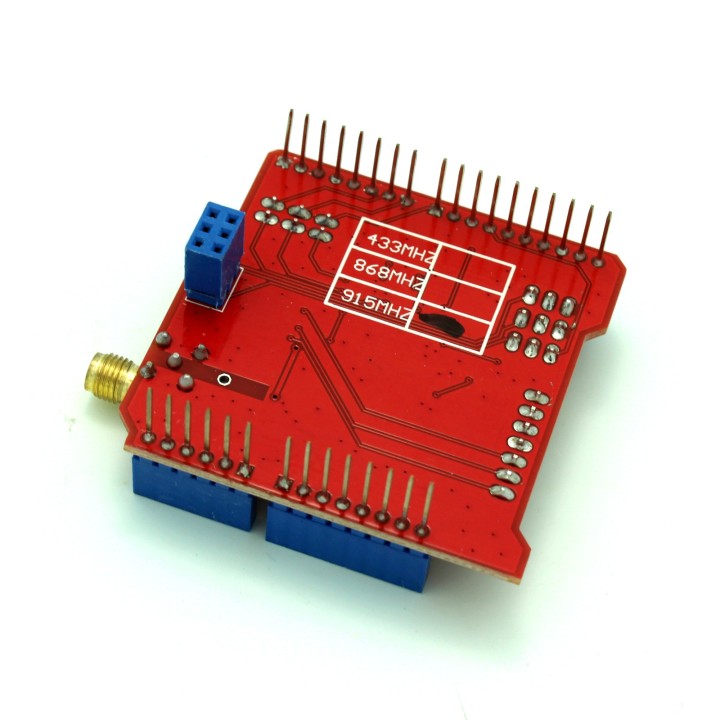

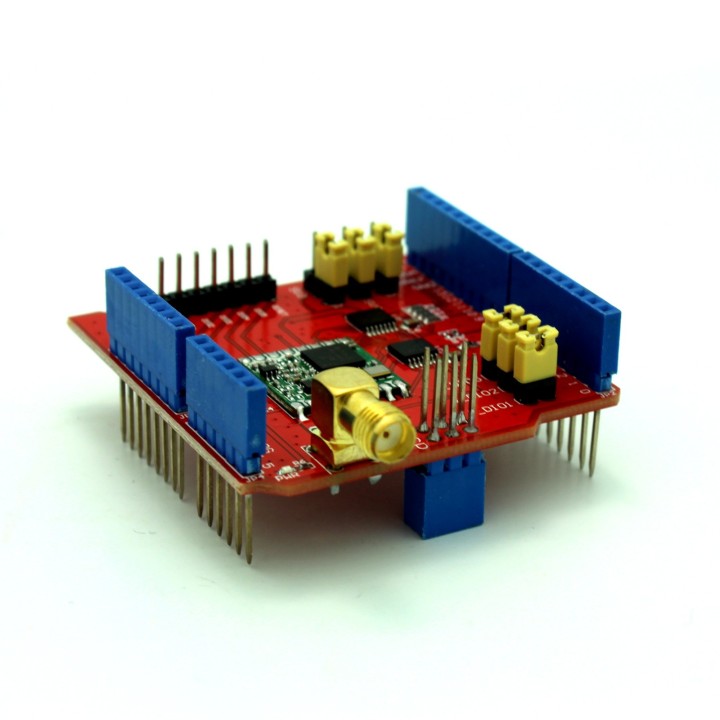

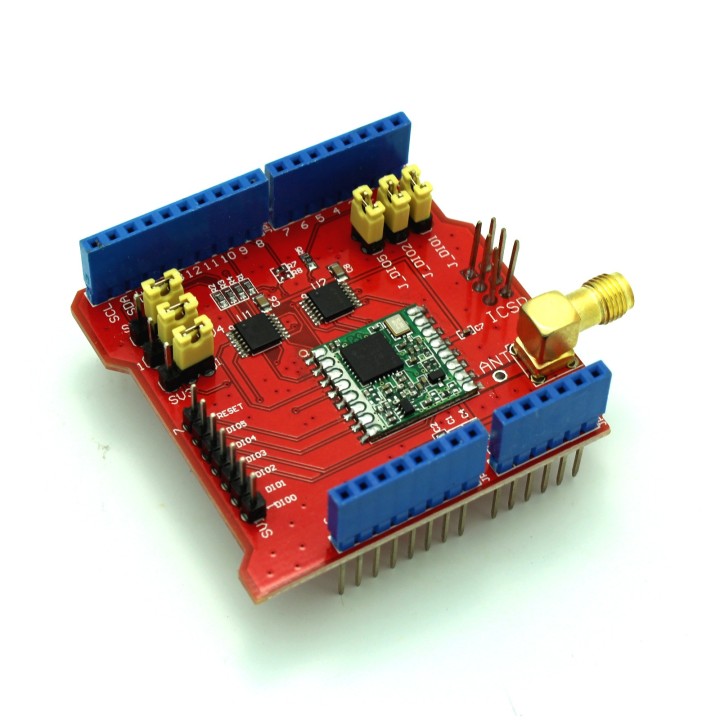

LoRa Shield for Arduino - RFM96 915Mhz

Add LoRa (Long Range) RF 915Mhz Radio functionality to your Arduino projects with this LoRa Radio Shield. Fully assembled.

More details

Availability: ✅ Ships Today

Last Updated: 10/01/2025

Tinkersphere

TA1287

$40.94

Reduced price!

-9%

$44.99

Flash Sale Ending Soon

* If a flash sale ends before payment, the reduction will not be applied

Have a question? 0 answered questions

Features

  • Compatible with 3.3v or 5v I/O Arduino Board.
  • Frequency Band: 915 MHz
  • Low power consumption
  • Compatible with Arduino Leonardo, Uno, Mega, Due
  • i-pex connector onboard for attaching external 915Mhz antennae

Specifications

  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.
  • Programming Reference: https://wiki.dragino.com/index.php?title=Lora_Shield
