Laser Distance Sensor (up to 164ft) LIDAR

Long Range Laser Distance Sensor that can measure the distance from 1.18 inches to 164 feet (0.03 - 50 meters / 0.098 - 164 feet)! Serial output 115200 baud signal to give the exact distance with a resolution down to 0.01mm!

More details

Availability: SHIPS TODAY

Last Updated: 02/20/2024

Tinkersphere

TS4026

$119.99

Features:

  • Long Range Laser Distance Sensor
  • Measure distances up to 164 feet with LIDAR laser technology!
  • Works for detecting the distance to the object in front of it between 1.18 inches and up to 164 feet (3cm to 50m)!
  • Range: 1.18 inches - 164 feet (3 centimeters - 50 meters)
  • Resolution: ±1 mm

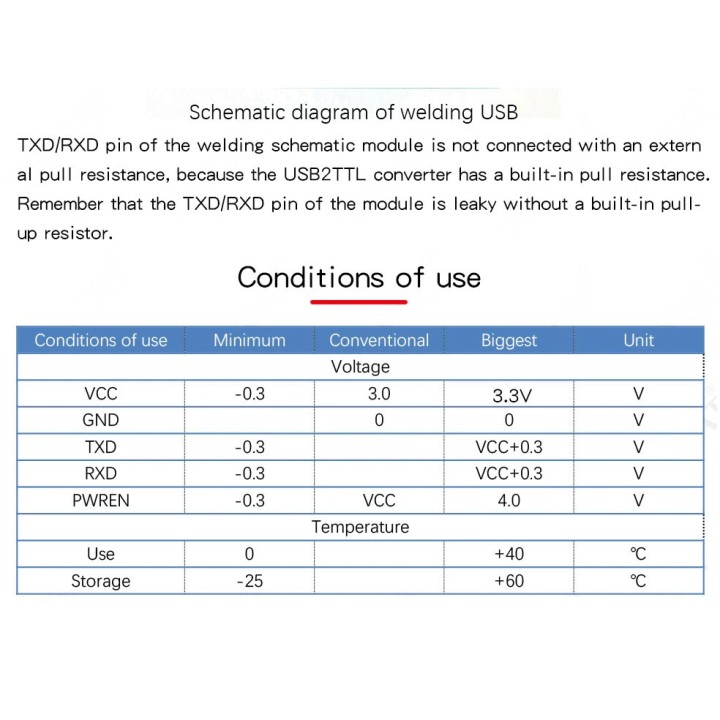

  • Power input: 2.5 to 3.3V DC
  • Current:300mA
  • Data Input / Output: TTL 3.3V and 5V USB with included USB serial converter
  • Supports USB2.0
  • Communication speed up to 115200 baud

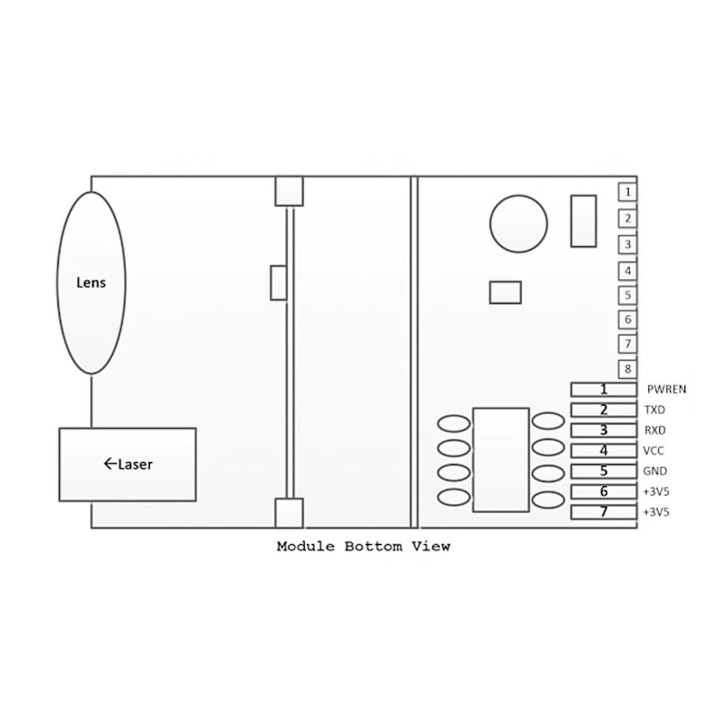

  • Pinout:
    • PWREN: Power Enable (to activate the sensor / power on set this pin to HIGH)
    • TXD: Transmit Data Pin
    • RXD: Receive Data Pin
    • VCC: 2.5V - 3.3V (power over 3.3V will damage the sensor)
    • GND: Ground 0V

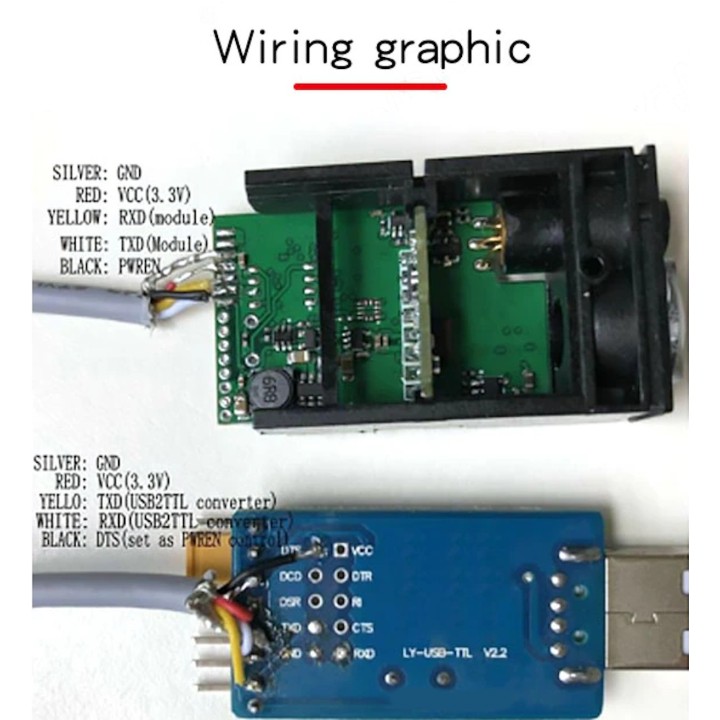

  • Easy to use serial output (takes just 2 pins (RX and TX) on your microcontroller or connect via USB using the included USB to serial adapter)
  • Distance unit: millimeters
  • Laser type: 620-690nm
  • Laser class: class II, <1mW (B-level security)
  • Single measurement time: 0.4 to 4 seconds
  • Weight: 10g
  • Dimensions: 4.9cm x 2.5cm x 1.3cm (length*width*depth)
  • Operating temperature: 0C to 40 °C
  • Storage temperature: -25 to 60 °C

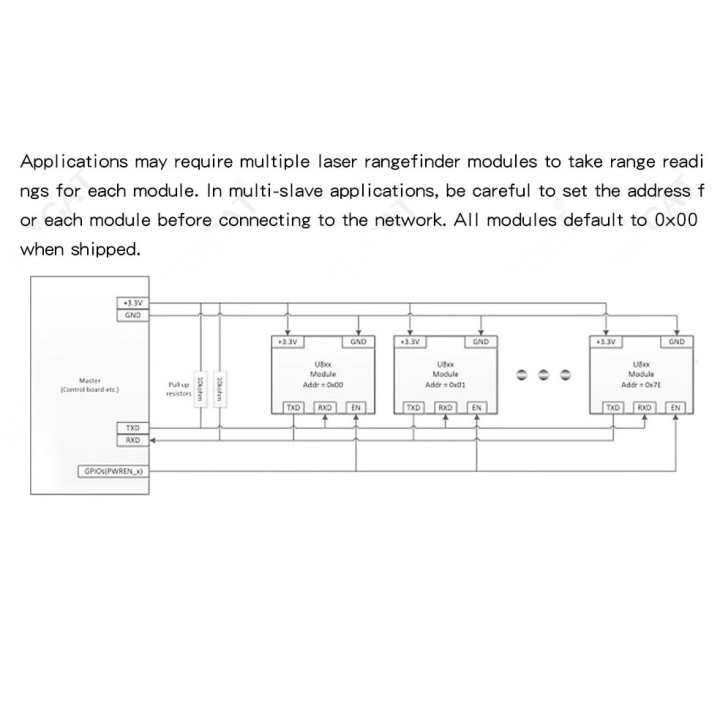

  • Can be daisy chained. (Default serial address is 0x00) for multi-slave applications, change the address on the modules

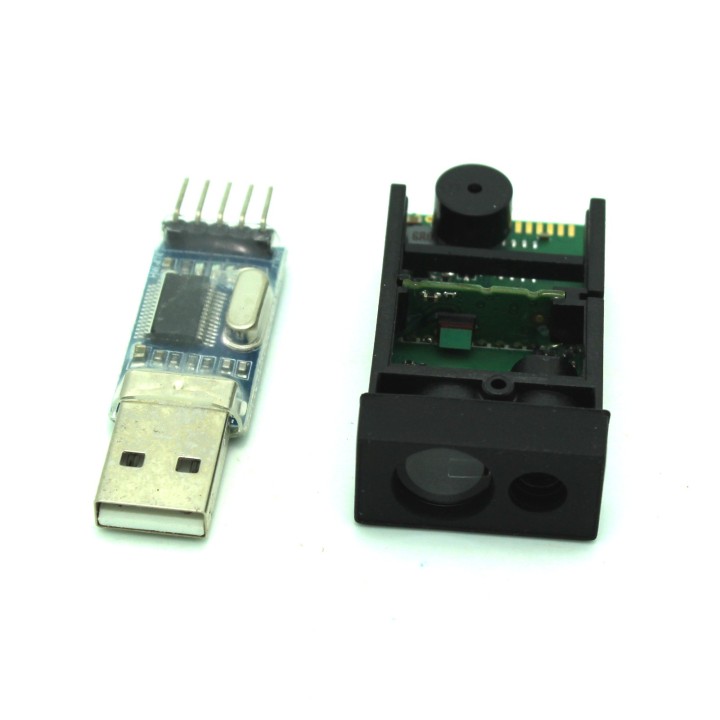

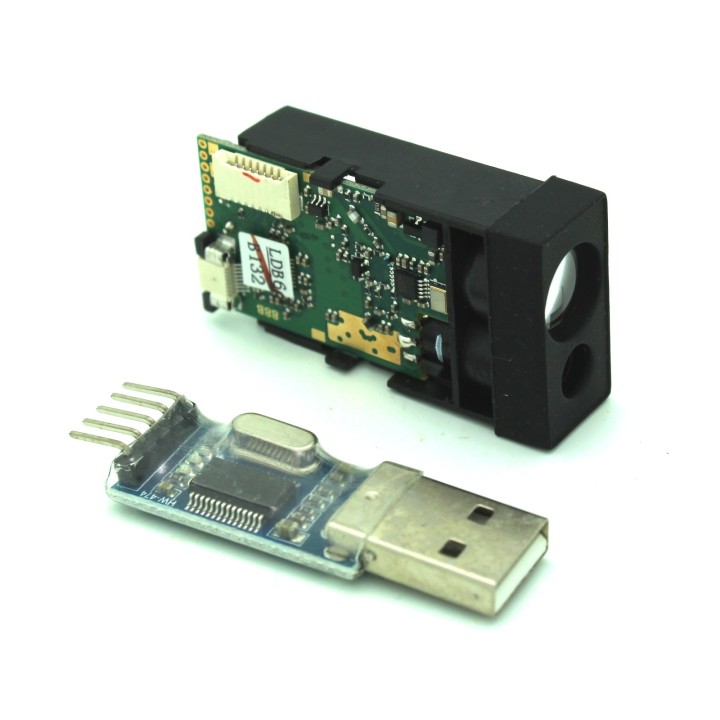

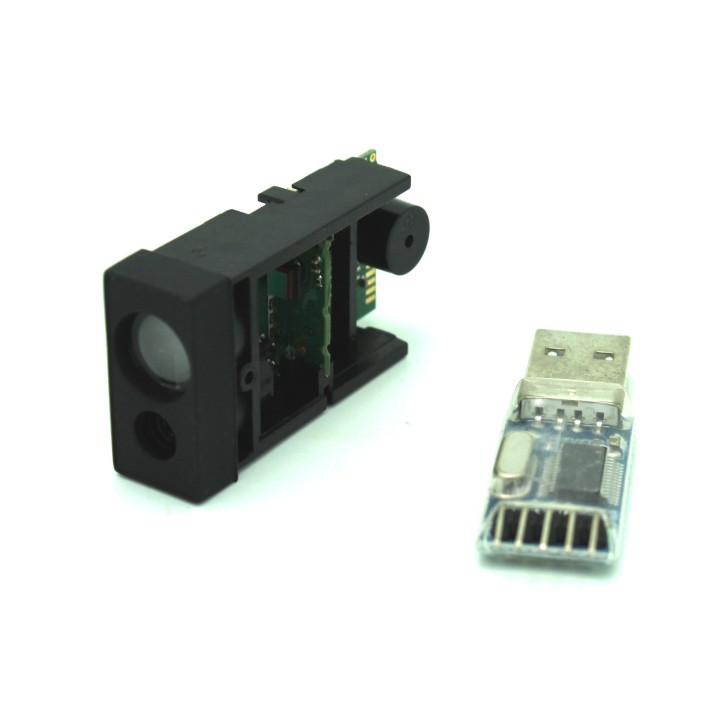

  • Includes:
    • Laser Distance Sensor
    • USB to Serial Adapter
