IPEX Y Type Splitter Cable 1 MHF4 plug right angle to 2x UFL U.FL PCB 0.81mm IPX
IPEX Y Type Splitter Cable 1 MHF4 plug right angle to 2x UFL U.FL PCB 0.81mm IPX
IPEX Y Type Splitter Cable 1 MHF4 plug right angle to 2x UFL U.FL PCB 0.81mm IPX
IPEX Y Type Splitter Cable 1 MHF4 plug right angle to 2x UFL U.FL PCB 0.81mm IPX

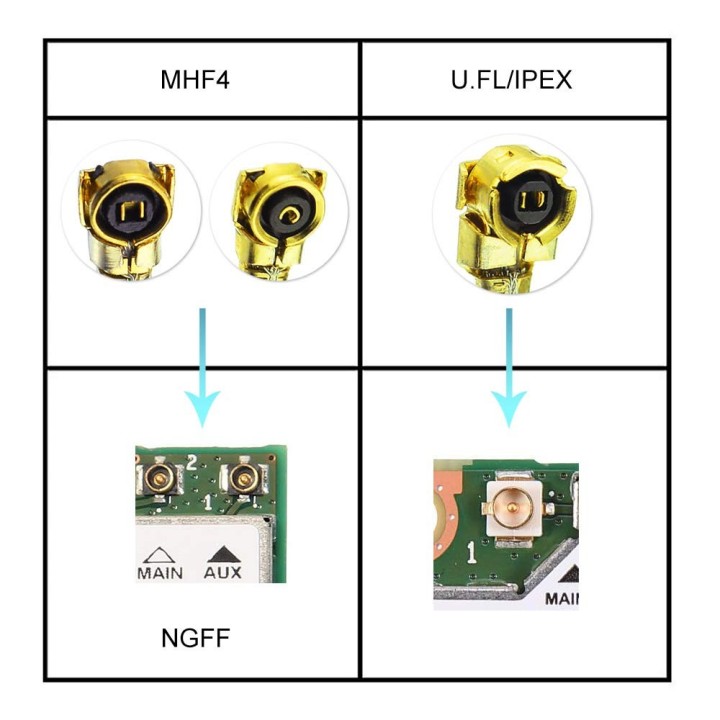

MHF4 to IPEX IPX UFL U.FL PCB Antenna Connector Splitter
MHF4 to IPEX IPX UFL U.FL PCB Antenna Connector Splitter

MHF4 to IPEX IPX UFL U.FL PCB Antenna Connector Splitter

Tinkersphere
$4.99

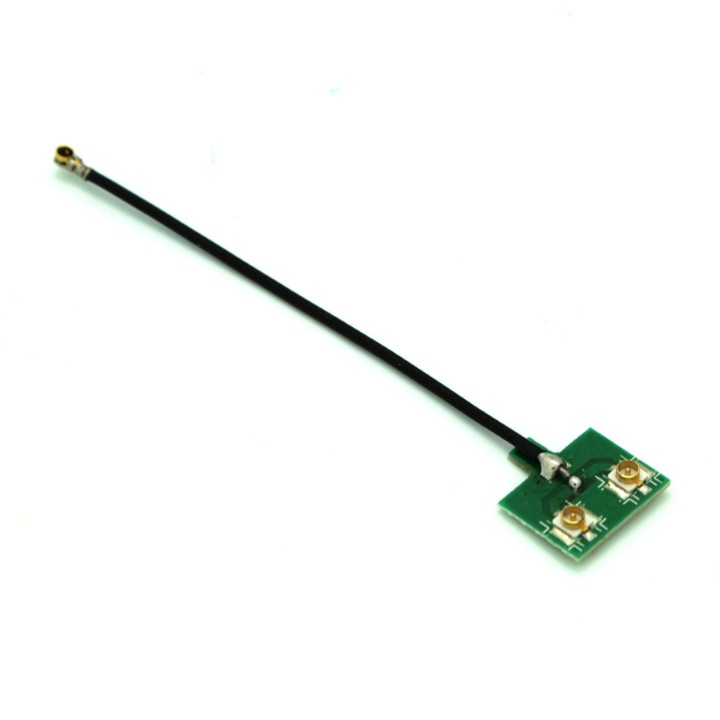

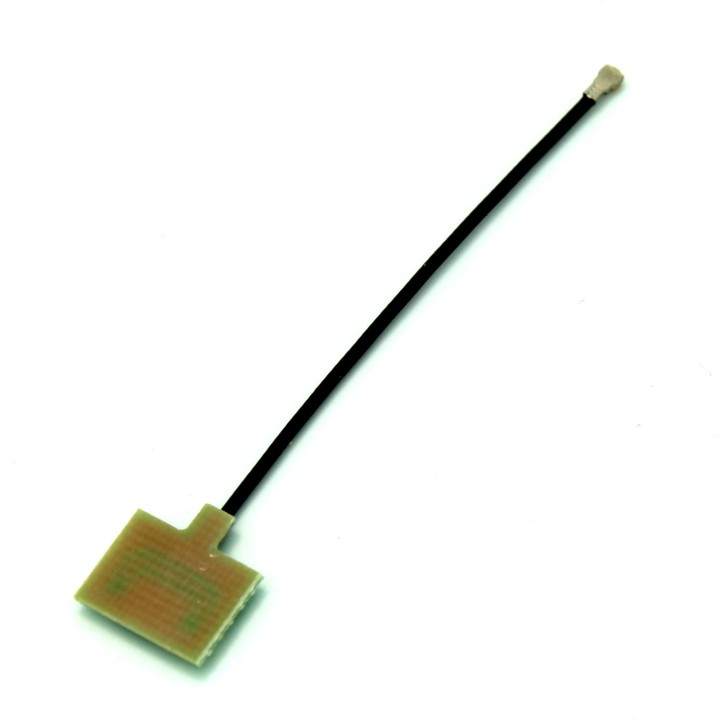

PCB / Board antenna splitter 1 to 2. IPEX Y Type Splitter Cable 1 MHF4 Plug Right Angle to 2x UFL U.FL PCB 0.81mm IPX.

âś…SHIPS TODAY
Share

Features:

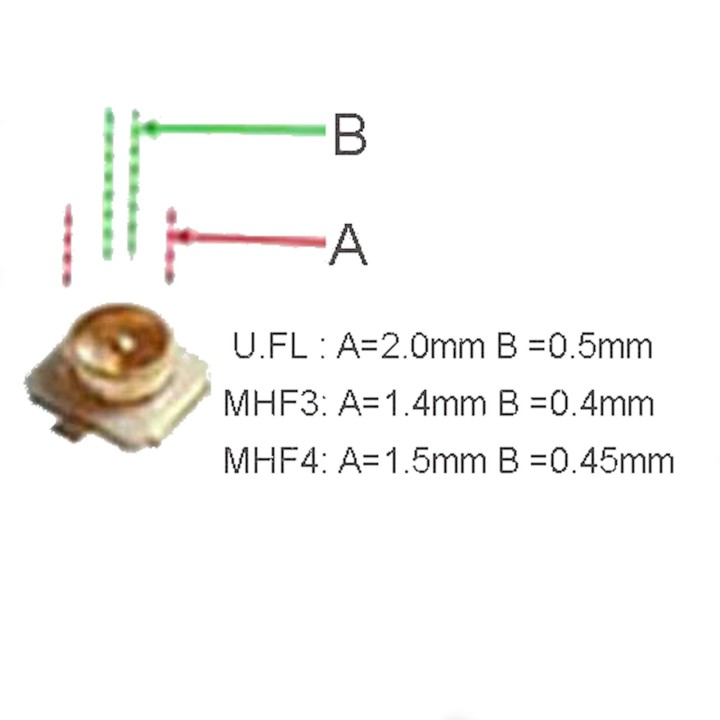

  • Useful for splitting uFL/u.FL/IPX/IPEX antenna connections on printed circuit boards
  • Y type splitter: 1 to 2.

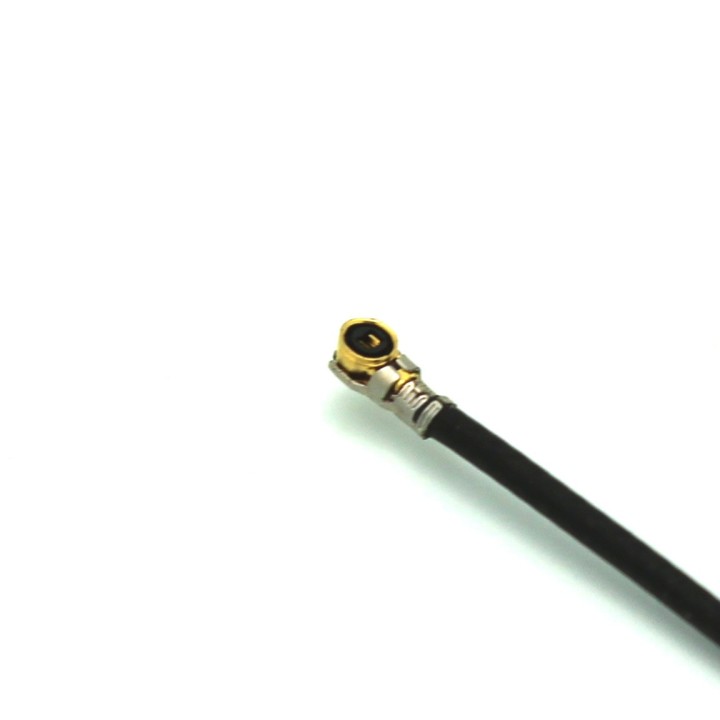

  • Side A : 1pcs MHF4 plug right angle connector ( center hole is female pin )

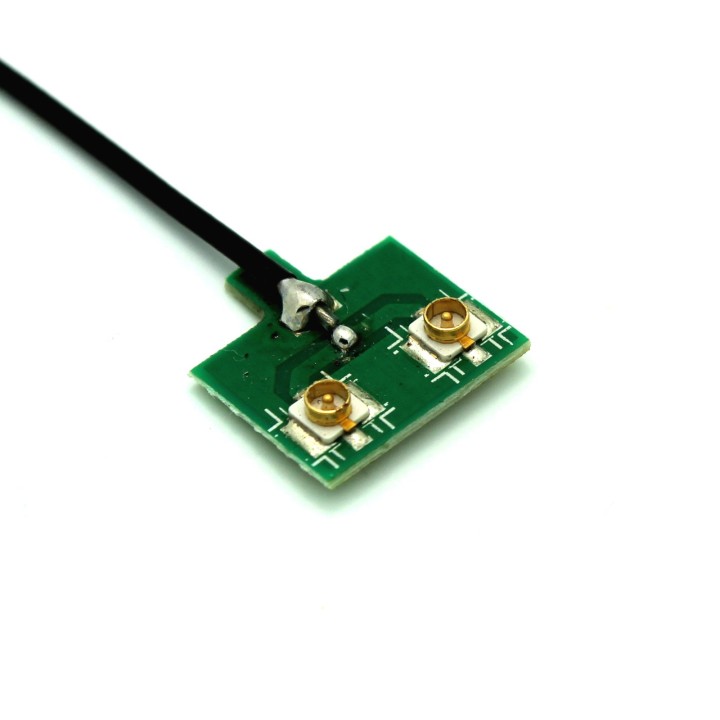

  • Side B : 2pcs uFL/u.FL/IPX/IPEX SMD on PCB ( center is male pin )
  • Cable Type : OD 0.81mm diameter RF Pigtail Coax
  • Cable Length : 2 inches ( 5cm )
  • Impedance : 50 ohm
  • Gold plated or Nickel plated contacts
  • Salt spray test : >= 48 hours, enhanced corrosion resistance
  • Mounting : machined brass construction crimp & soldered mount
  • Connection Protection: Black Heat Melt Shrink Tube Versafit or equivalent
  • Operating frequency :0-6 GHZ ( option: 1.2Ghz 2.4Ghz 3Ghz 6Ghz 8Ghz 12Ghz 18G... )
  • Technical characteristics : temp. range : -65 to +165 ( PE cable range : -55 to +85 )

  • Brand
  • Reference
    TS3898
  • In stock
    12 Items
