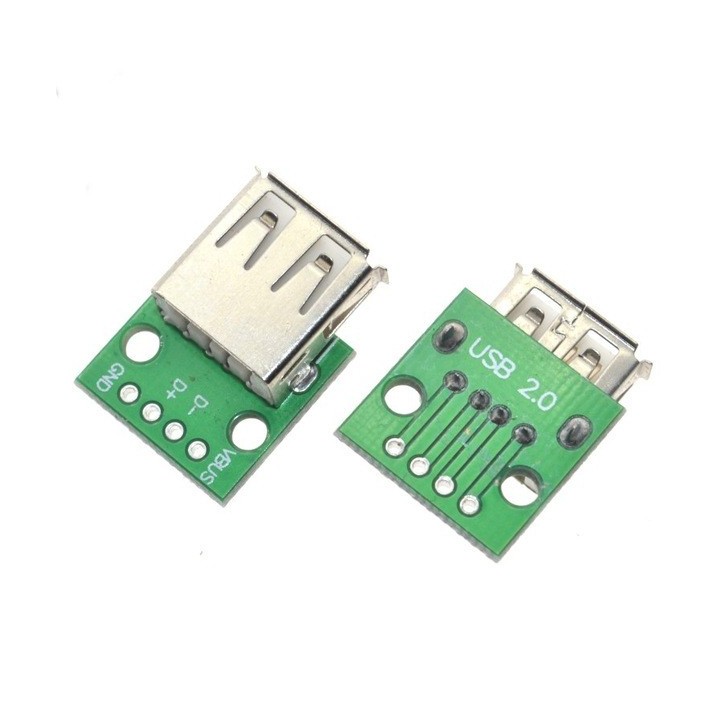

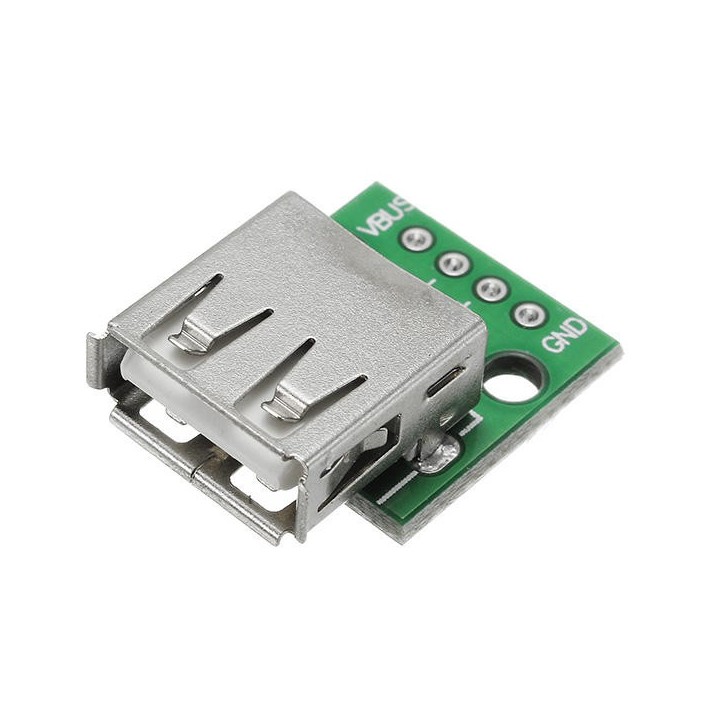

Female USB Breakout Board

A Female USB Port with breakout board so you can solder on wires or header pins and plug directly into an breadboard or perfboard. Female Type A USB Breakout.

More details

Availability: Ships 06/04/2025

Last Updated: 06/02/2025

Tinkersphere

TA1269

$1.99

Features:

  • Female USB Port to DIP Breakout
  • All 5 pins are broken out
  • Pinout Spacing: 2.54mm / 0.1"
  • Works with Male Header Pins or can be soldered directly to wires
  • Clearly labelled pins
  • Connector onboard: Female USB A Port
  • Dimensions:
    • PCB Dimensions: 17mm x 17mm
    • Overall Dimensions: 23mm x 17mm x 10mm (L x W x H)
can you tell me the physical dimensions of the female USB breakout board, Ref TA1269? Thank you. .... Lou
PCB dimensions are 17mm x 17mm and overall dimensions with the plug are 23mmx17mmx10mm
Default User Icon Lou · 02/25/2025
Was this answer helpful? (0) (0)
