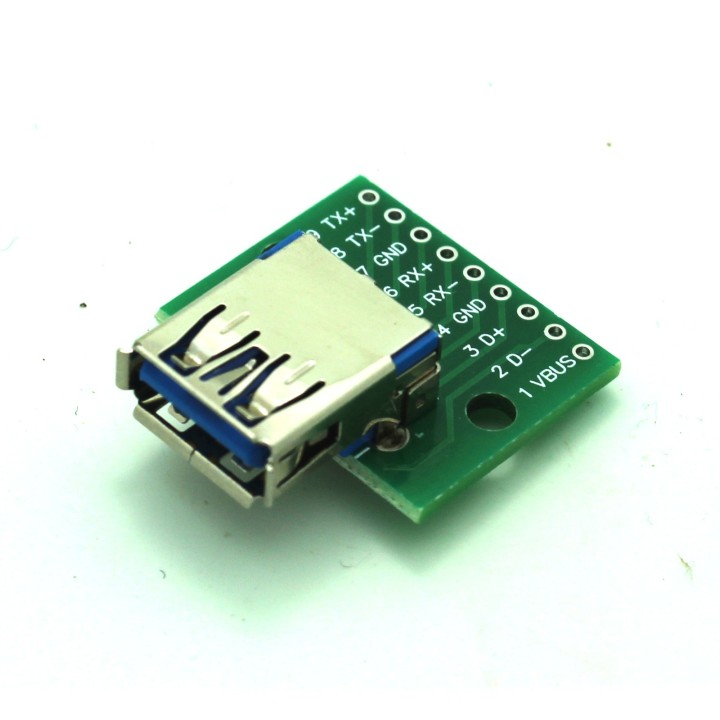

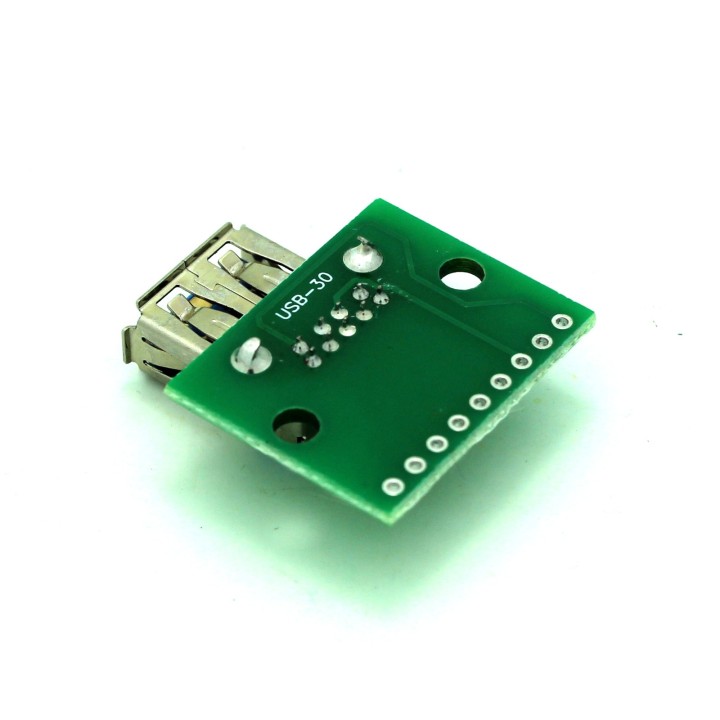

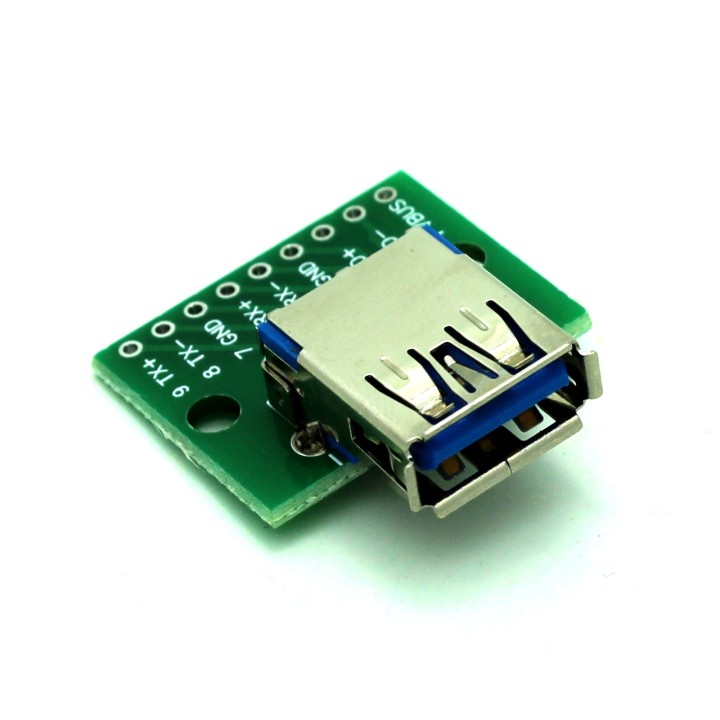

Female USB 3.0 Breakout Board Blue USB to DIP 2.54mm
A Female USB 3.0 Port with breakout board so you can solder on wires or header pins and plug directly into an breadboard or perfboard. Female Type A USB 3.0 Breakout with blue center pin.
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
Parts & ComponentsBreadboard / Perfboard PrototypingBreadboardingFemale USB 3.0 Breakout Board Blue USB to DIP 2.54mmFeatures:
- Female USB 3.0 Port to DIP Breakout
- All 9 pins are broken out
- Pinout Spacing: 2.54mm / 0.1"
- Works with Male Header Pins or can be soldered directly to wires
- Clearly labelled pins
- Connector onboard: Female USB A Port
- Blue USB 3.0 Breakout Board
- USB 3.0 Pinout:
- Pin 9: TX+
- Pin 8: TX-
- Pin 7: GND
- Pin 6: RX+
- Pin 5 RX-
- Pin 4: GND
- Pin 3: D+
- Pin 2: D-
- Pin 1: VBUS
