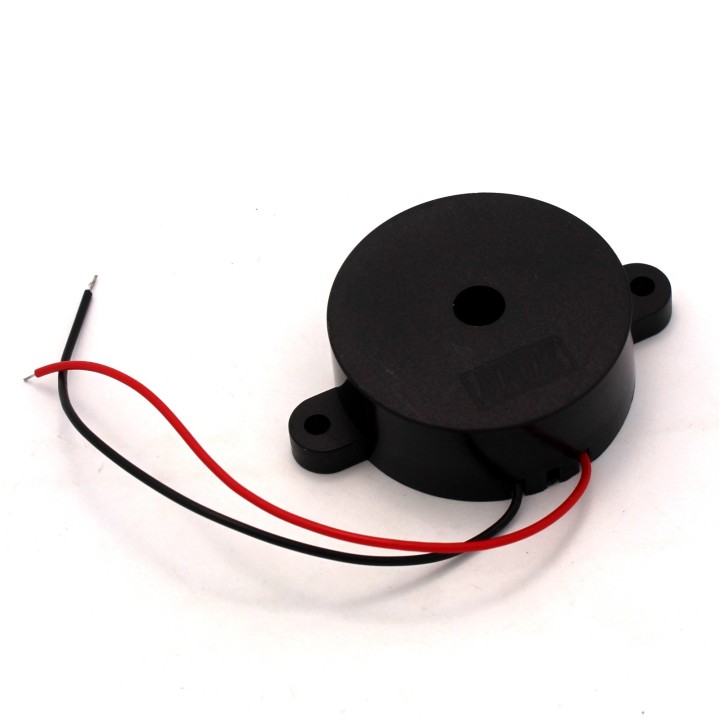

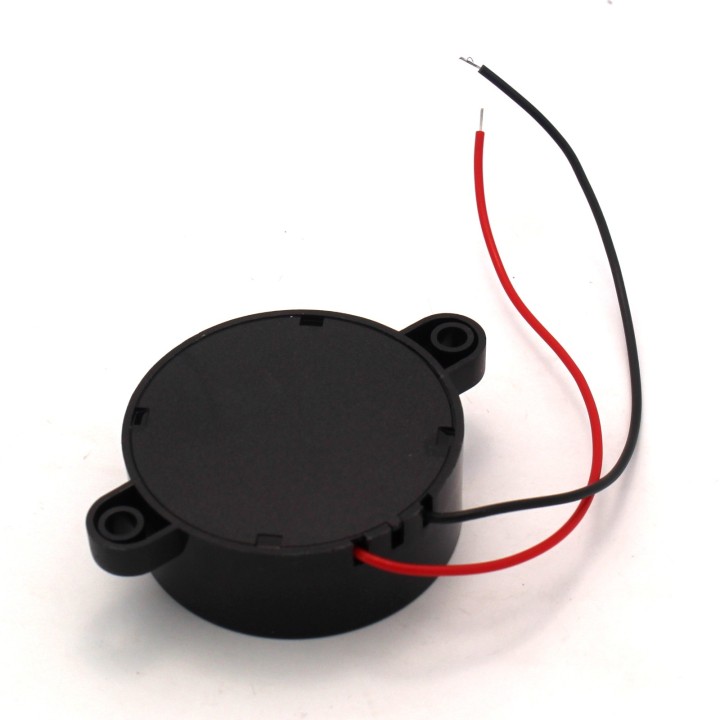

Large Piezo Buzzer - 12VAC

Large Piezo Buzzer with wire leads and plastic casing. Easy to mount, loud sound, takes 12VAC.

More details

Availability: SHIPS TODAY

Last Updated: 03/04/2024

Tinkersphere

TS2307

$3.99

Features:

  • Rated Voltage: 12 VAC
  • Current Consumption: 3mA
  • 90 dB
  • Rated Frequency: 2800Hz
  • Operating Voltage: 1V to 30 V
  • Operating Temperature: -20C to 60C
  • Storage Temperature: -30C to 70C
  • Weight: 10g

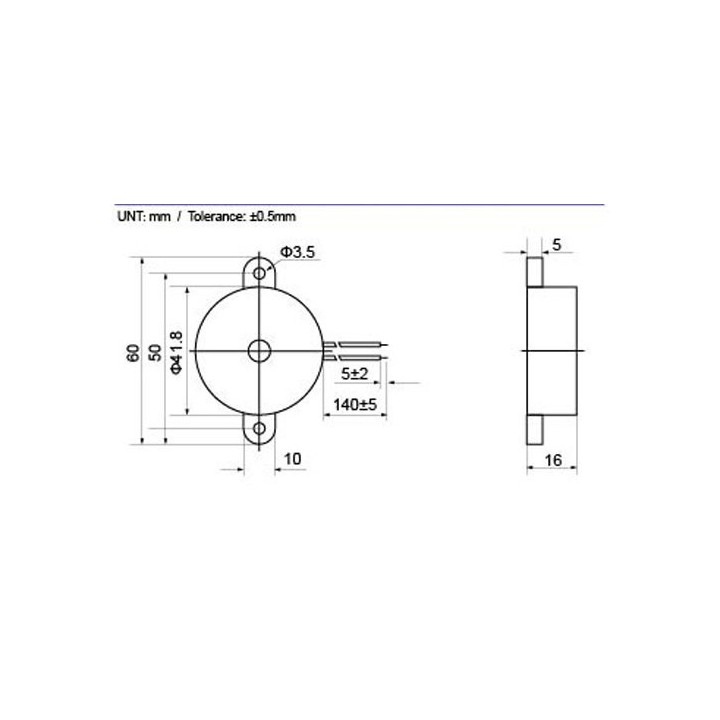

  • Diameter: 41.8mm
  • Takes a square wave signal between 1V and 30V that alternates between high and low.
