Thru Hole Piezo Electric Transducer / Buzzer 1.5VAC 22mmx11mm PKM22EPP-40

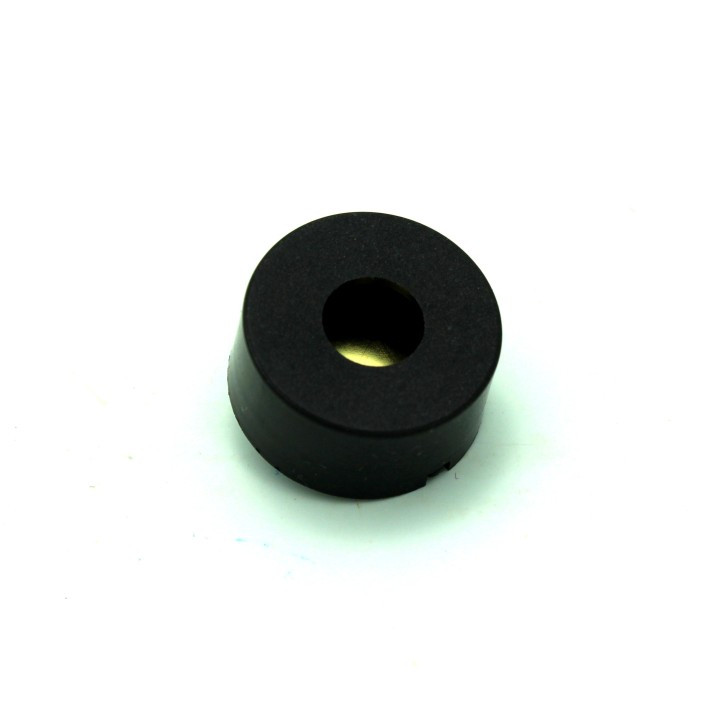

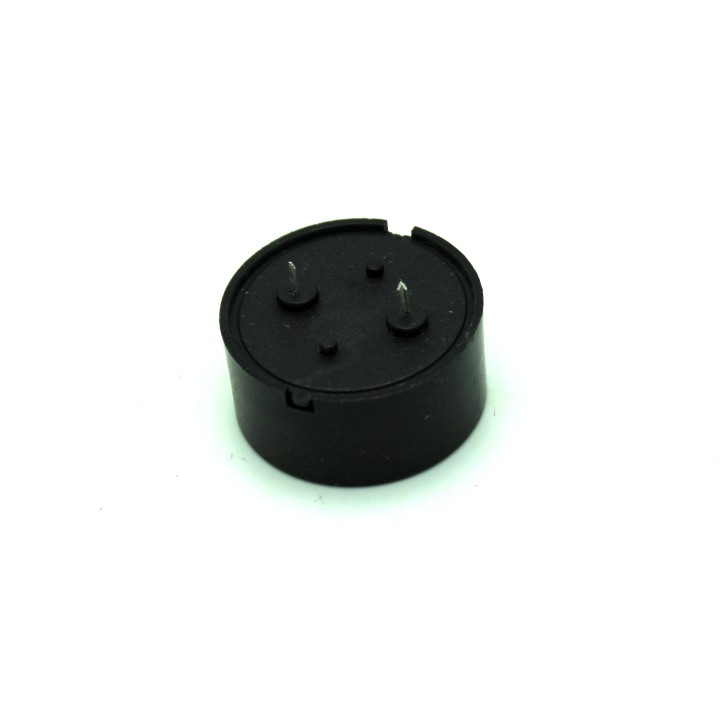

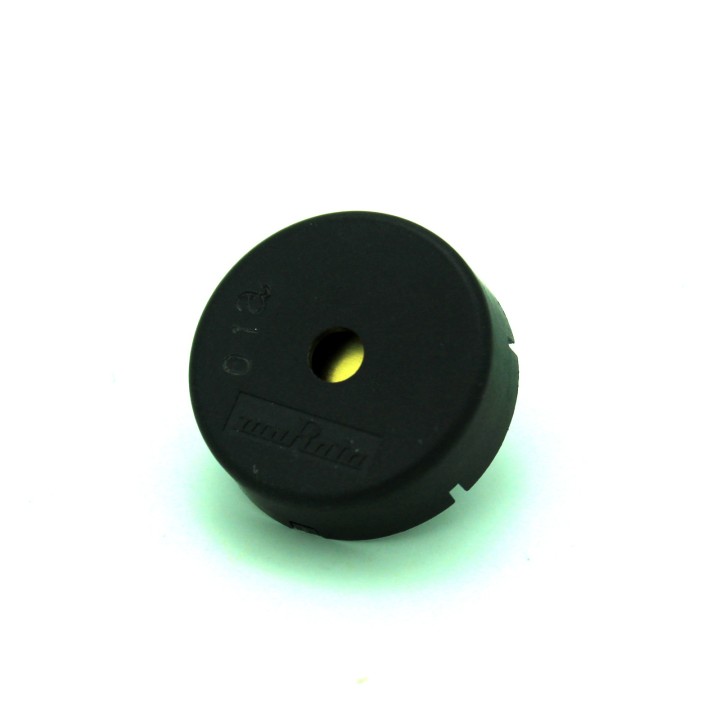

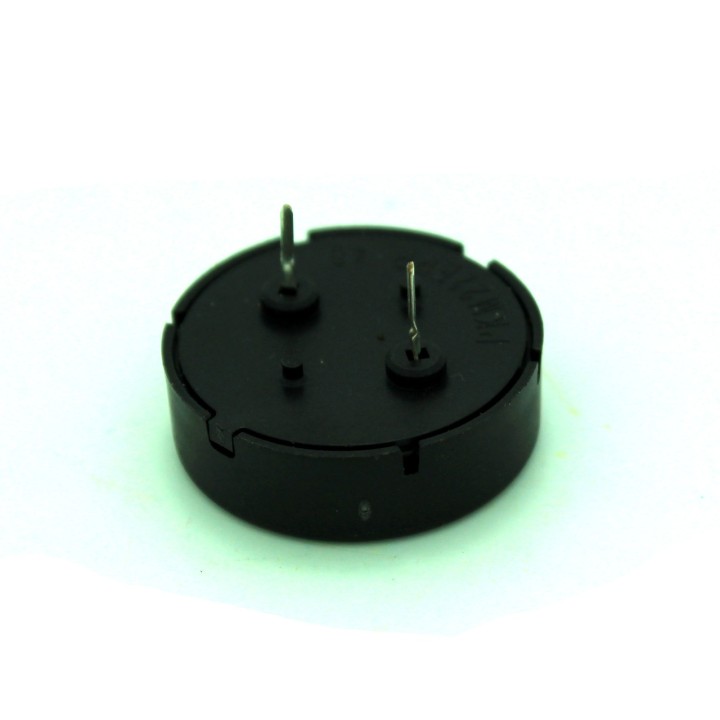

This 22mm plastic encased piezo buzzer has through hole leads. Just give it an AC signal between 1.5V and 30V and you'll have a buzz that can be heard at 75dB @ 1.5V.
This 22mm wide Piezo Electric Transducer is a buzzer. Most piezo electric transducers, including this one, require an AC or alternating signal to power them. Just hook this buzzer up to a 1.5V - 30V AC power source and your projects will have sound!
- Operating Voltage: 1.5-30V AC (Alternating current)
- Rated Voltage: 1.5Vac
- Max Voltage: 30Vac
- Resonant Frequency: 4kHz
- Sound Pressure Level: 75dB

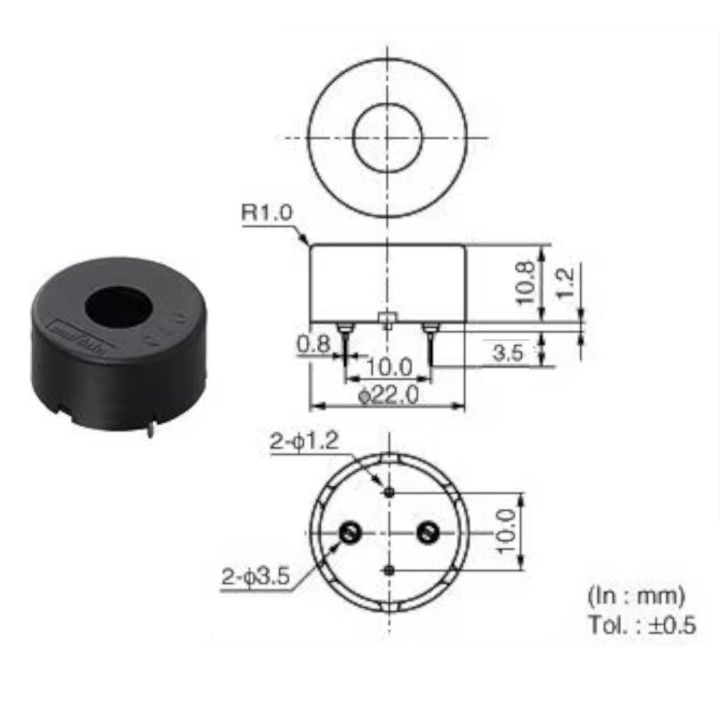

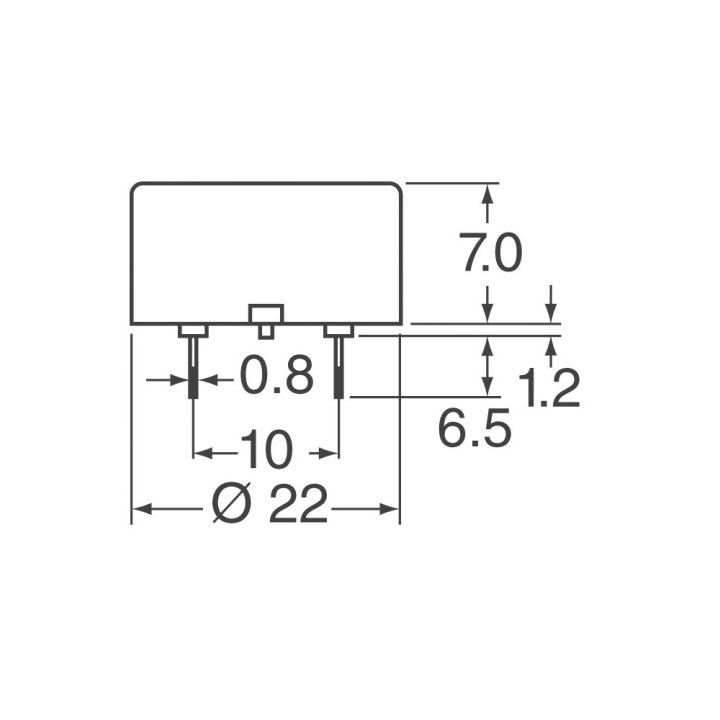

- Diameter: 0.79" (20mm)
- Height: 0.43" (11mm)
- Connector Type: Throgh Hole Pins
- Tone Type: External Drive
- Color: Black
- Operating Temperature: -20°C ~ 70°C
Â
Want to use this Buzzer with a DC power source? Below you'll find a simple oscillator circuit to get this buzzer running with a 555 timer, 2 resistors and a capacitor. Otherwise, just pick up one of our Solid State Buzzers with a built in oscillator circuit!
