Bill Acceptor (Arduino Compatible)

Bill acceptor that takes in $1, $5, $10, $20 and $100 bills.

More details

Availability: IN STOCK

View Product Location Store Map
Tinkersphere

TS2597

$189.99

Features:

  • Serial Bill Acceptor
  • Accepts US $1, $5, $10, $20 and $100 bills
  • Place the bill into the acceptor and it will feed it out the back and send a signal via serial to your Arduino or other controller that the money has been received!
  • Make your projects into money makers with this cash acceptor
  • Width: 66mm
  • Standby Current: 150 mA
  • Running Current: 540 mA
  • Peak Current: 1.5 A
  • Outputs a 50ms LOW pulse, followed by a 50ms HIGH for each dollar in a bill (ex: if a $5 bill is inserted the output is a 50ms LOW pulse with a 50ms HIGH interval between each pulse five times)

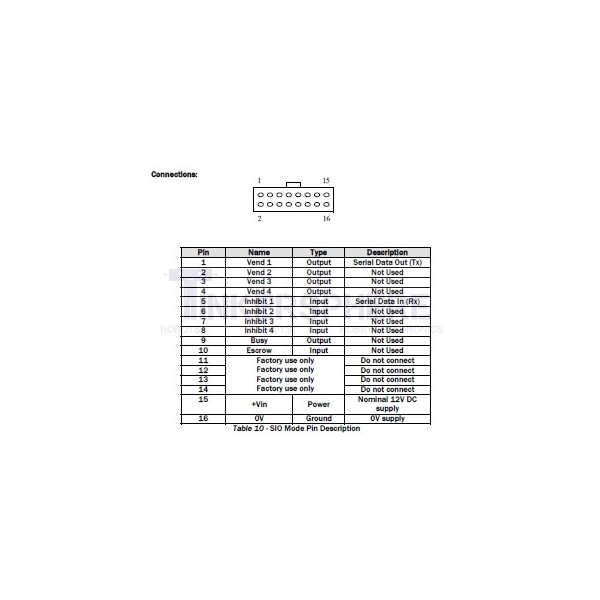

  • Default Setting: SIO (Serial I/O)
  • Bill Acceptance: 4 way
  • Acceptance Rate: greater than 99.8%
  • Input Power: 12VDC
  • Operating Temperature: 3C to 50C
  • RoHS & CE Certified
  • Works with Mega 2560

Recommended accessory:  DB9 Breakout


// Basic Arduino Code for Bill Acceptor Test
// Wiring Diagram
//                   o +5V
//                   |
//                  R 2.2K ohm
//                   |
//   Bill Acceptor Serial output Pin o-------+-------o Arduino in
//
// Bill Acceptor Ground Pin o-------+-------o Arduino Ground
// |
// o Power Supply Ground




void setup()
{
 Serial.begin(9600);
    pinMode(2, INPUT);
}

void loop()
{
 if( Serial.available() > 0)
 {
   Serial.println(Serial.read()); // prints the result to Serial Monitor
 }
}
