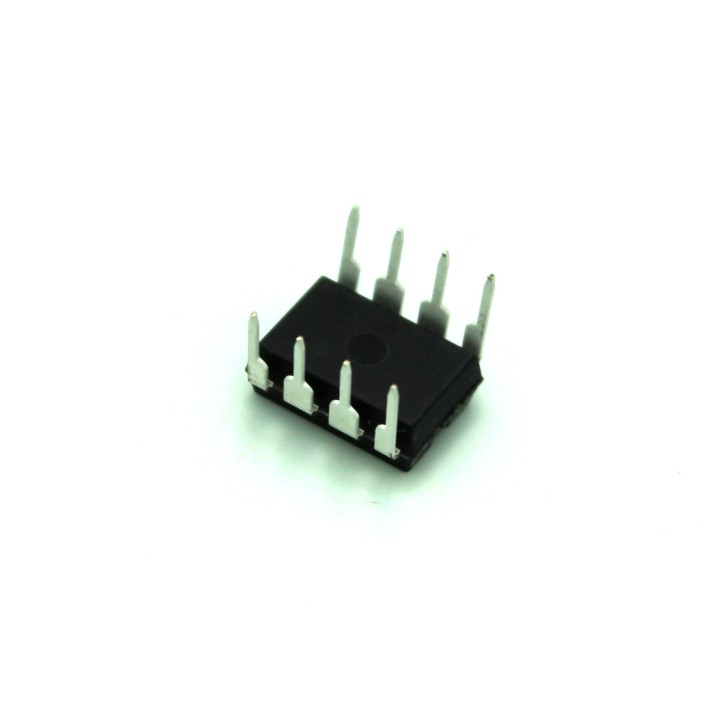

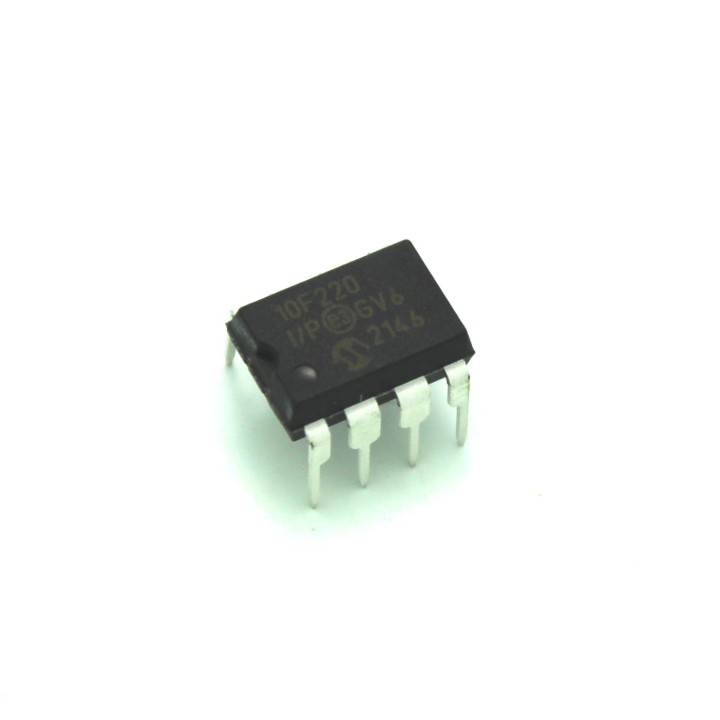

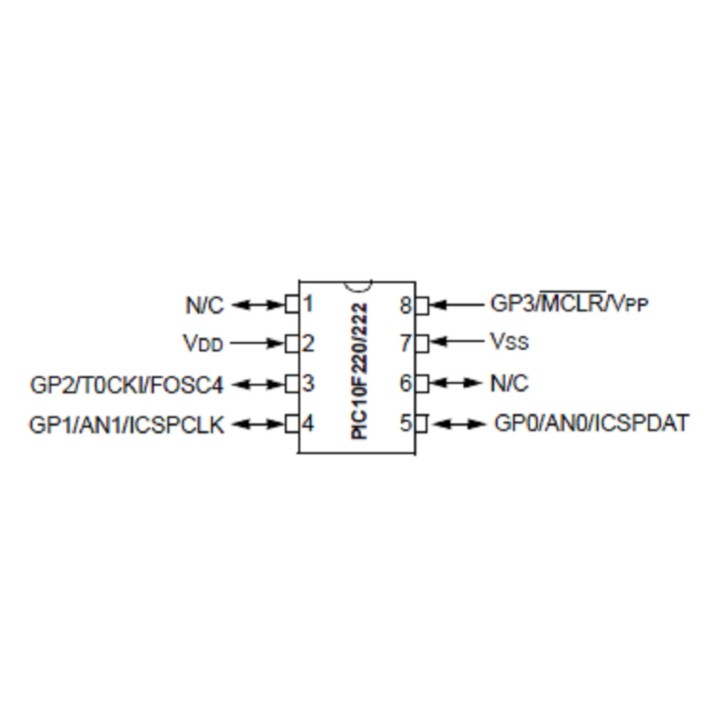

PIC10F220 PIC Microcontroller

The PIC10F220 is a low-cost, high-performance, 8-bit, fully-static Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles.

More details

Availability: SHIPS TODAY

Last Updated: 12/04/2022

Tinkersphere

TS4061

$3.29

The PIC10F220 is a low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles.

Features:

  • Only 33 Single-Word Instructions to Learn
  • All Single-Cycle Instructions Except for Program Branches which are Two-Cycle
  • 12-bit Wide Instructions
  • 2-Level Deep Hardware Stack
  • Direct, Indirect and Relative Addressing modes for Data and Instructions
  • 8-bit Wide Data Path
  • 8 Special Function Hardware Registers
  • Operating Speed:
    - 500 ns instruction cycle with 8 MHz internal clock
    - 1μs instruction cycle with 4 MHz internal clock
  • 4 or 8 MHz Precision Internal Oscillator:
    - Factory calibrated to ±1%
  • In-Circuit Serial Programming™ (ICSP™)
  • In-Circuit Debugging (ICD) Support
  • Power-On Reset (POR)
  • Short Device Reset Timer, DRT (1.125 ms typical)
  • Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
  • Programmable Code Protection
  • Multiplexed MCLR Input Pin
  • Internal Weak Pull-Ups on I/O Pins
  • Power-Saving Sleep mode
  • Wake-up from Sleep on Pin Change
  • Operating Current:
    - < 175μA @ 2V, 4 MHz
  • Standby Current:
    - 100 nA @ 2V, typical
  • Low-Power, High-Speed Flash Technology:
    - 100,000 Flash endurance
    - > 40-year retention
  • Fully Static Design
  • Wide Operating Voltage Range: 2.0V to 5.5V
  • Wide Temperature Range:
    - Industrial: -40°C to +85°C
    - Extended: -40°C to +125°C
  • 4 I/O Pins:
    - 3 I/O pins with individual direction control
    - 1 input only pin
    - High current sink/source for direct LED drive
    - Wake-on-change
    - Weak pull-ups
  • 8-bit Real-Time Clock/Counter (TMR0) with 8-bit
    Programmable Prescaler
  • Analog-to-Digital (A/D) Converter:
    - 8-bit resolution
    - 2 external input channels
    - 1 internal input channel dedicated
