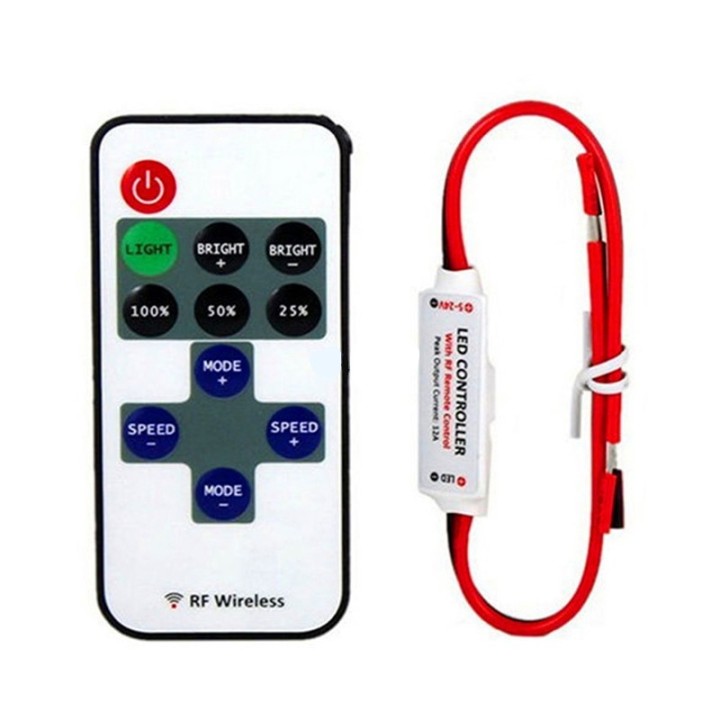

Remote Dimmer for 12V 2 Pin LED Strip

Features:

• Functions both as a remote controlled Dimmer & Dynamic Lighting Effect Controller with 8 pre-programmed modes
• 8 Dynamic Lighting Effects
• 10-level Dimmer
• 256-Grade PWM
• Speed Adjustable
• In-line design saves space and integrates seamlessly with TS1080 Warm White LED strips
• Smooth Dimmer Effect
• Auto Save Function

Specifications:

• Dynamic mode: 8 modes
• Dynamic speed level: 10 levels
• Lighting brightness level : 10 levels
• PWM grade: 256 grades
• Smooth dimmer effect: Yes
• Working voltage: DC 5~24V
• Output current : peak 12A
• Remote control type: RF Wireless (RF wireless is better than standard remotes because the receiver does not need to be within line of sight of the remote)
• Remote frequency: 433MHz
• Max remote distance : approx 50ft
• Takes 1 CR2025 battery (battery not included)

Includes:

• Dimmer
• RF Wireless Remote Control

RF Wireless Remote Buttons:

• Turn On/ Standby
• Press this key to turn on unit or switch to standby mode. Unit will turn on and restore the last settings that were there prior to shutdown.
• Lighting mode
• Switch between lighting mode and dynamic mode
• Dimmer Adjust Shortcuts
• Quickly set brightness to 100%, 50%, or 25%
• Dynamic Mode Adjust
• Switch to dynamic mode from lighting mode, or switch between different dynamic modes.
• Speed Adjust
• Adjust playing speed of dynamic modes. Press SPEED+ to increase seed and press SPEED- to decrease.
• Brightness Adjust (Dimmer)

• • Adjust Brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to decrease

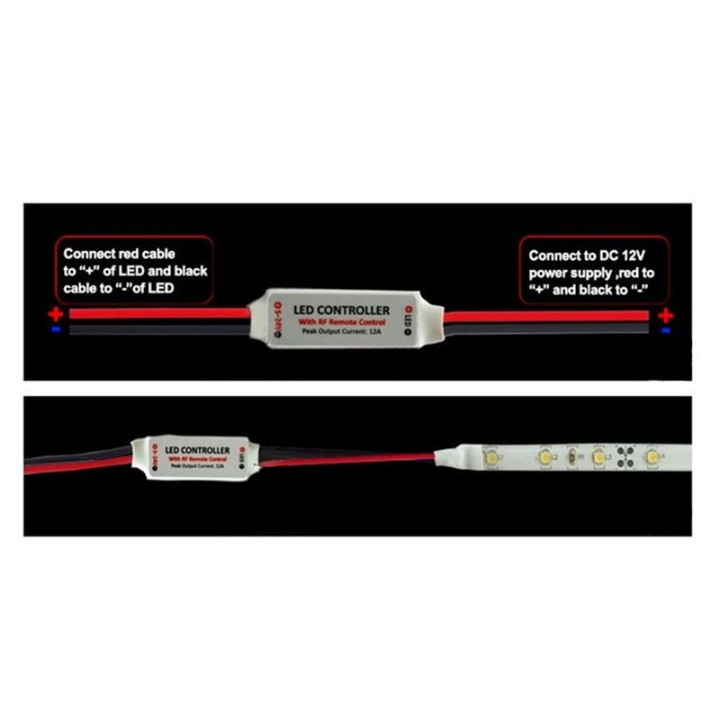

Receiver Setup:

1. Connect Side A to the Power Supply
This unit accepts 5V to 24V DC power supply. The red wire should be connected to positive and black cable to negative.
Please select proper power supply according to the LED application.
2. Connect Side B to the LED Strip
The red cable should be connected to LED positive and black cable to negative. The peak output current is 12A.
