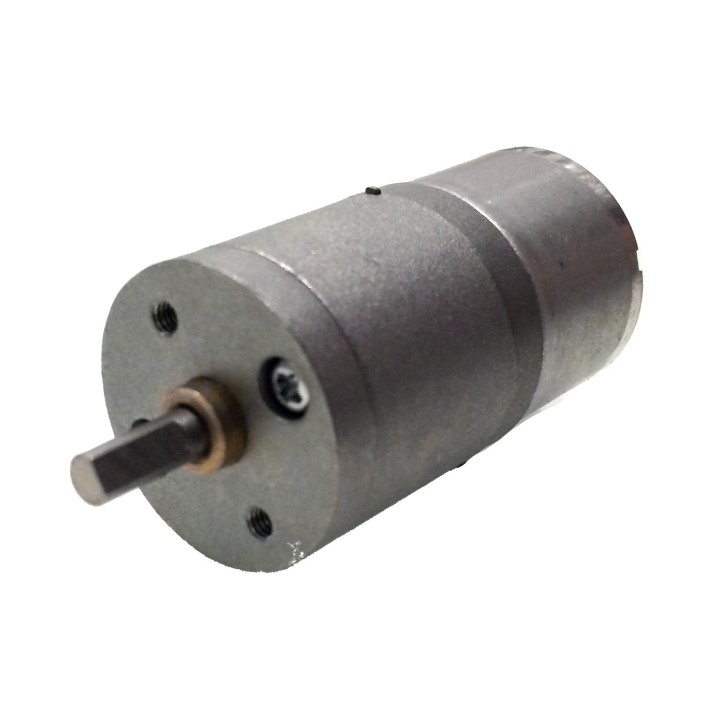

Low Speed DC Motor 12V / 375 RPM

This Low Speed DC Motor is geared down to reduce speed to 375 RPM (revolutions per minute). Apply 12V across the terminals to power it.

More details

Availability: SHIPS TODAY

Last Updated: 10/10/2024

Tinkersphere

TS1814

$18.99

Apply 12V DC across the 2 metal connectors at the back of this DC motor to have it spin. This is a special Low Speed DC Motor that will spin at a speed of 375 RPM max. Can be used with a DC Motor speed controller to make it even slower. It works by having a tiny metal gearbox built-in for durability and speed reduction.

Specifications:

  • Operating Voltage: 6V - 12 V
  • Free-run speed at 12 V: 375 RPM
  • Free-run current at 12 V: 90 mA
  • Stall current at 12 V: 0.85 A
  • Stall torque at 12 V: 1.8 kg.cm 24.997 ozin
  • Gear ratio: 1:21.3
  • Shaft Type: D Shaft

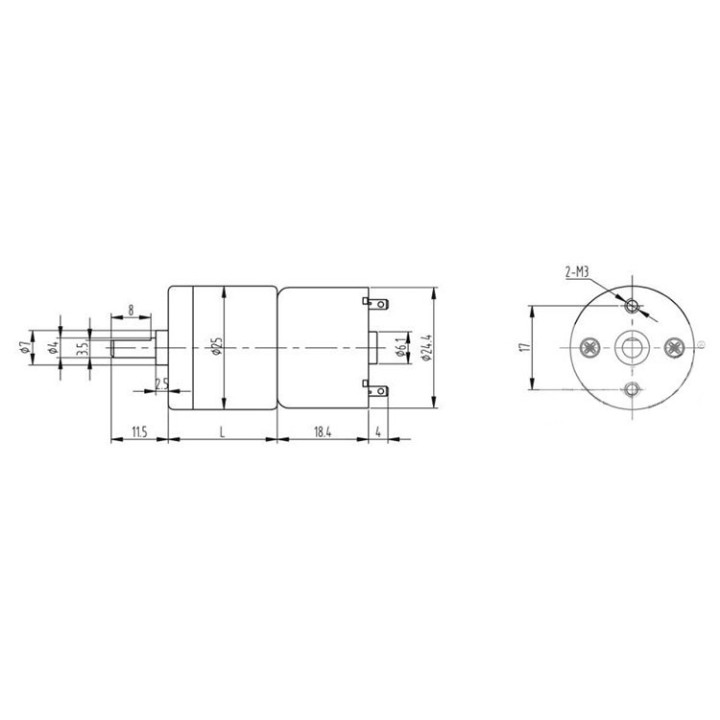

  • Reductor size(L): 19 mm
  • Weight: 63 g


To power, use this battery pack.
