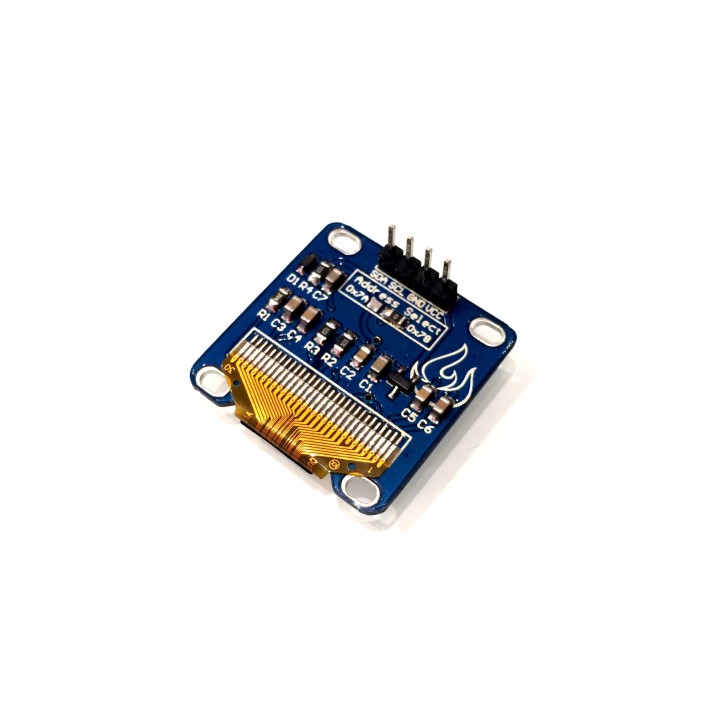

Yellow & Blue OLED Module (Soldered)

Wire up this crisp 128x64 Yellow and Blue Organic LED Module for a small display with rich contrast. No soldering required.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS-804

$12.90

Have a question? 0 answered questions

Just plug your Raspberry Pi or Arduino into this little Organic LED module for a wonderfully high contrast mini display. Very low power consumption and deep contrast make OLEDs perfect for watches, wearables, and low power projects where you'd like a little display. Easy to interface with using standard SPI Protocol.

Specifications:

  • Yellow and Blue OLED Module for Arduino & Raspberry Pi
  • Operating Voltage: 3V - 5V
  • Pinout: GND, VCC ,SCL, SDA
  • Number of Pins: 4
  • Communication Protocol: I2C
  • Resolution: 128x64
  • Drive Duty: 1/64 Duty

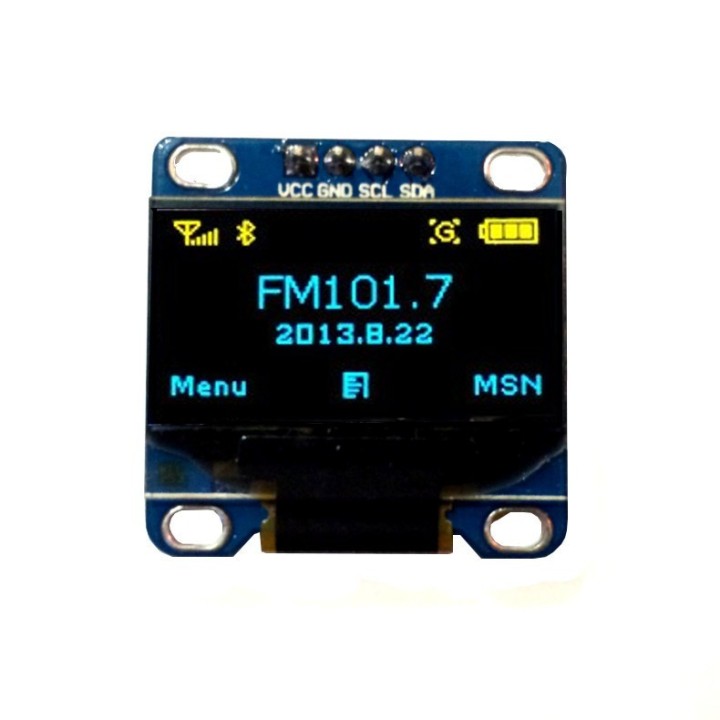

  • Colors: Yellow and Blue on Black
    • Yellow: top 16 pixels
    • Black horizontal line separating the yellow and blue segments
    • Blue: bottom 48 pixels
  • Viewing Angle: >160 degrees
  • Power Consumption: 0.08W
  • Operating Temperature: -30C to 70C
  • Chipset: SSD1306
  • Module Dimensions: approx. 1.03 x 0.76 x 0.07 inches (26.70mm x 19.26mm x 1.85mm)
  • Screen Dimensions: approx. 0.86 x 0.44 inches (21.74mm x 11.2mm)
  • Arduino & Raspberry Pi compatible
