USB RFID Reader Maximize

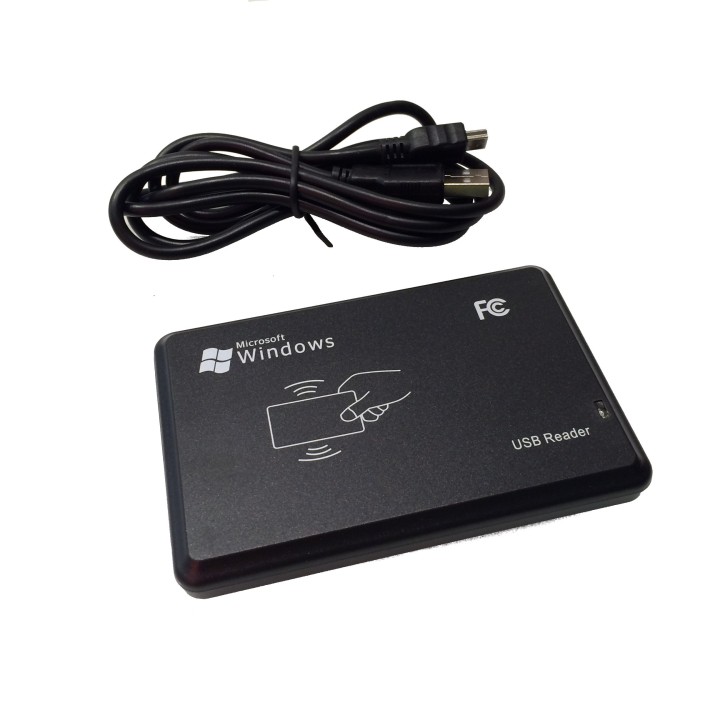

USB RFID Reader 125kHz

Plug this RFID reader into your computer's USB port to read RFID keyless entry cards and make your own security systems.

More details

Availability: SHIPS TODAY

Last Updated: 01/27/2023

Tinkersphere

TS-985

$34.90

Specifications:

  • Supports EM4001 and 4100 compatible RFID tags
  • Frequency: 125kHz
  • Power: 5V DC (via USB)
  • Reading distance: 2 - 4 inches
  • Dimensions:10.5 x 7 x 1.2cm / 4.13"x2.76"x0.47"
  • Windows & Linux Compatible
  • Raspberry Pi compatible
  • Emulates a keyboard:
    • When a tag is scanned, the tag serial number is "typed in" followed by the enter key.



Testing the reader:

  1. Plug in the USB RFID Reader: the LED should light up solid red within a second
  2. Open Notepad or any other text editor
  3. Scan tag: you'll hear a beep and the red LED will turn green for a moment
  4. In Notepad you should see the tag serial number such as '26605540'



No customers have asked questions about this product yet.
