Variable Capacitor 0 - 30pF Maximize

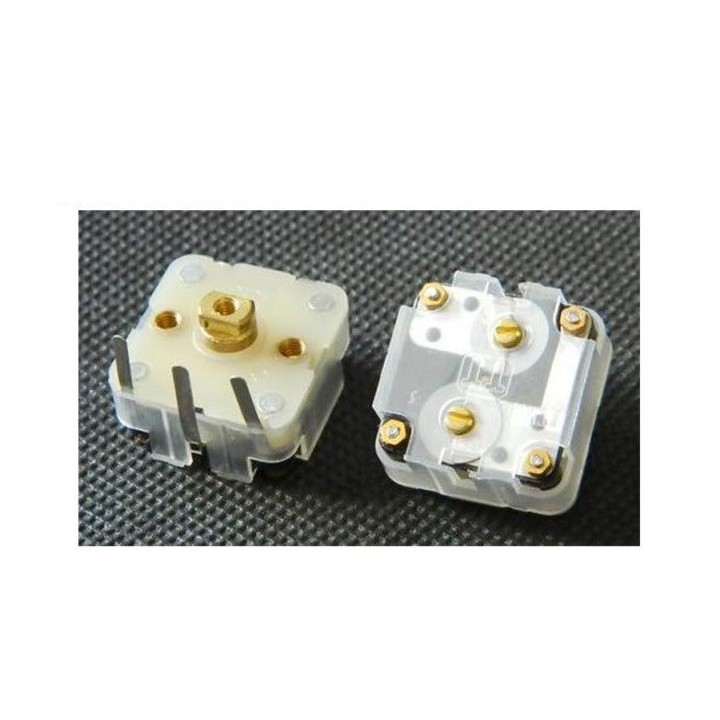

Variable Capacitor - 60pF / 140pF for AM Radios

Turn the knob on this duplex variable capacitor to change the capacitance from 0 to 60pf and 0 to 140pf. Useful for AM radio projects!

More details

Availability: SHIPS TODAY

Last Updated: 12/23/2024

Tinkersphere

TS2069

$4.49

Have a question? 0 answered questions

Features:

  • Variable Capacitor
  • Capacitor Range: 0pF to 60pF and 0pF to 140pF (Duplex)
  • Number of pins: 3
  • Useful for radio and audio projects where you want to change capacitance on the fly.
  • Capacitance: 60 pf /140 pf
  • Insulation resistance: 500Mohm
  • Max voltage: 100VDC
  • Dynamic contact resistance: 20Mohm
  • Rotational torque: 5 - 25 mN.m
  • Useful for AM Radio projects
  • Center Screw Hole Diameter: 2.1mm
  • Pin Spacing: 6 mm
  • Total Size(Excluding Pins): 21x21x14.5mm
  • Use our capacitor calculator to tell what capacitor you have based on the code on it or to convert between pF, nF, uF, and F values.
