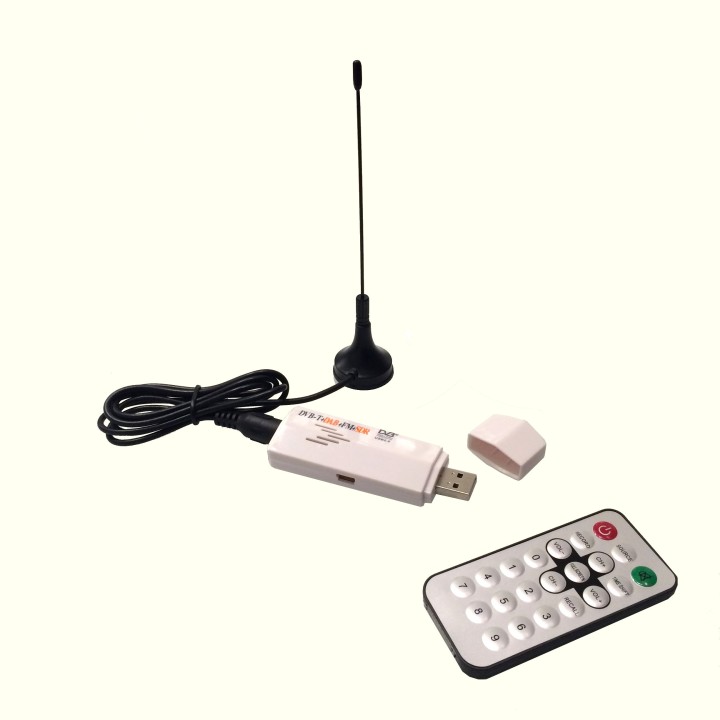

SDR: Software Defined Radio Receiver USB Stick - RTL2832 w/R820T
Receive Radio signals via USB with this SDR (Software Defined Radio) USB Stick with external antenna. Antenna included.
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
Maximize Features:
- Chipset: RTL2832 with R820T
- USB Radio Receiver
- SDR (Software Defined Radio)
- Suitable for use with GNU Radio software
- Digital terrestrial TV and radio reception (DVB-T)
- Support Windows vista/7/XP/2000
- 800MHz CPU or above
- 128M RAM or above, VGA Card at the least 8MB Memory, Microsoft Direct X9.0 or above, Digital Terrestrial TV Antenna
- Special requirement for operate PIP
- VGA Card support VMR 9
- USB 2.0 port
- P4 1.8G recommended
- COFDM&FEC: Fully DVB-T Compliant,2K or 8K FFT Size
- Bandwidth: 6/7/8Mhz Auto Select
- De-Multiplexing, Engine, Hardware ,Stream capture: PES&TS
- Tuner: Input terminal: 75 Ohm Din
- Receiving Frequency: 48.25~863.25Mhz Tuning Range
- A/V Format: Video format: MPEG-II Main Profile & Main Level. Audio format: MPEG-II Audio layer I&II 4
- Dimensions (USB DVB-T Stick): 8.7 x 2.9 x 1 cm (approx)
- Dimensions (Remote Control): 8.4 x 3.9 x 0.6 cm (approx)
- Portable Antenna length: 105 cm
What type of RF connector is on this unit...??
IEC DVB-T TV PAL but the good news is it doesn\'t matter anyway since the antenna is included with the unit so you can just plug them both together. I just plugged the USB into my computer and the antenna into the USB. One and done.
Wayne · 05/05/2020
