Radio Telemetry Kit 915MHz

Use this Radio Telemetry set for 915MHz communication between your air and ground units on the UAV.



More details

Availability: SHIPS TODAY

Last Updated: 12/04/2022

Tinkersphere

TS4056

$95.99

This 915MHz Radio Telemetry Kit is useful for communication between a quadcopter, helicopter or other airborne UAV and your laptop.

Features:

  • Compatible with:
    • 3DRobotics 3DR Radio Telemetry Kit 915Mhz
    • APM 2.5
    • APM2.6
    • Pixhawk
    • Arduino
    • Raspberry Pi
  • Pre-programmed to the correct baud rate just connect to your quadrino and start changing PIDs on the fly
  • Designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios.
  • Frequency: 915Mhz
  • Serial board (air unit) and USB (ground unit)
  • The radio is a 2-way half-duplex wireless communication system with a standard TTL UART interface, based on HopeRF's HM-TRP data link modules, and custom firmware that improves upon the modules' original features and performance.
  • The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through AT commands.

Telemetry Kit Specifications:

• Very small size
• Light weight (under 4 grams without antenna)
• 915Mhz frequency band
• Receiver sensitivity to -117 dBm
• Transmit power up to 20dBm (100mW)
• Transparent serial link
• Air data rates up to 250kbps
• Range of approx 1 mile with supplied antennas
• Demonstrated range of several kilometers with a small omni antenna
• Can be used with a bi-directional amplifier for even more range
• MAVLink protocol framing and status reporting
• Frequency hopping spread spectrum (FHSS)
• Adaptive time division multiplexing (TDM)
• Support for LBT and AFA
• Configurable duty cycle
• Built in error correcting code (can correct up to 25% data bit errors)
• Open source firmware
• AT commands for radio configuration
• RT commands for remote radio configuration
• Adaptive flow control when used with APM
• Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.
• Upgraded to more convince Molex 1.25mm

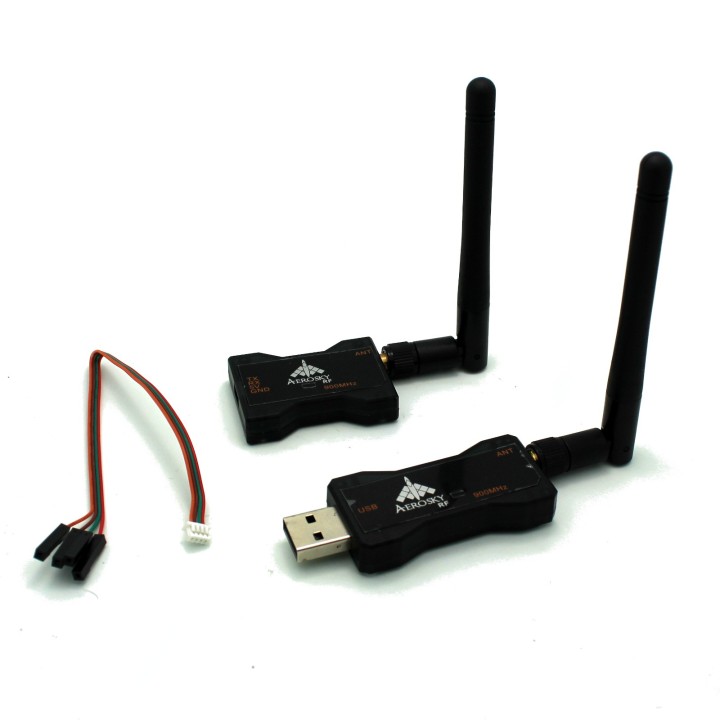

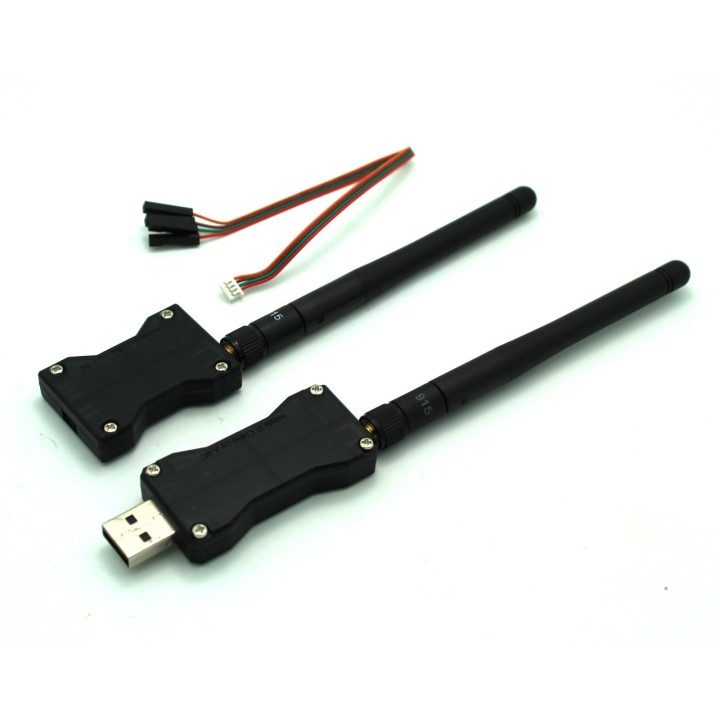

Includes:

  • 915MHz Air module with Case
  • 915MHz Ground Module with Case

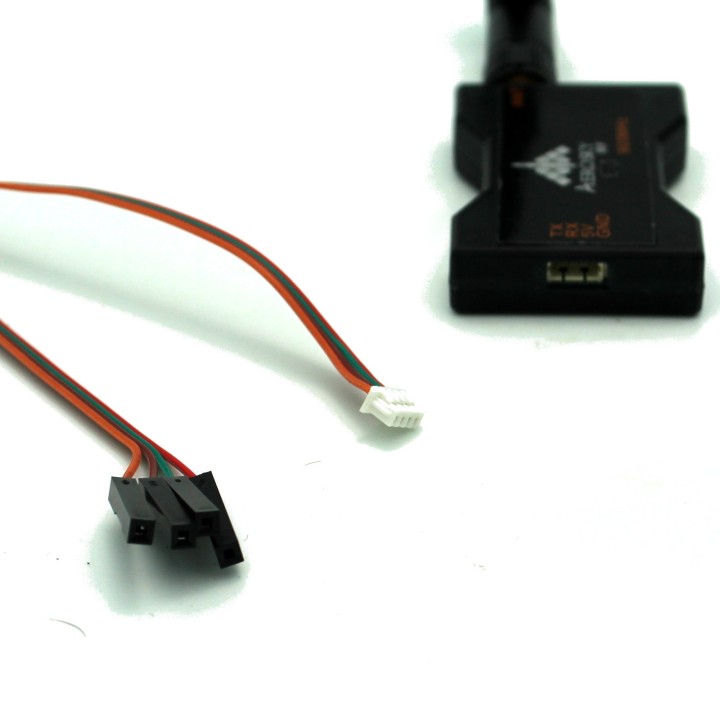

  • 4 Pin Connector wire
