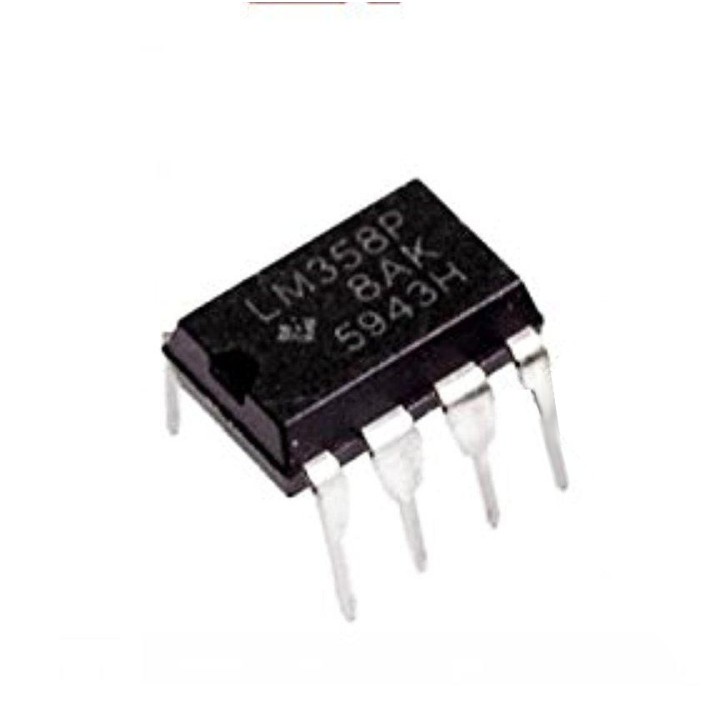

LM358 Op Amp

The LM358 is a Dual Op Amp which can work from 3V to 32V (single supply) or ±1.5 V to ±16 V (dual supplies) and has a large DC voltage gain of 100dB.

More details

Availability: SHIPS TODAY

Last Updated: 10/02/2023





  • Operating Voltage:
    • Single Supply: 3 V to 32 V
    • Dual Supplies: ±1.5 V to ±16 V
  • Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
  • Wide Unity Gain Bandwidth: 0.7 MHz
  • Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
  • Low Input Bias and Offset Parameters
  • Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
  • Input Offset Current: 2 nA Typical
  • Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
  • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V
  • Open-Loop Differential Voltage Gain: 100 dB Typical
  • Internal Frequency Compensation
