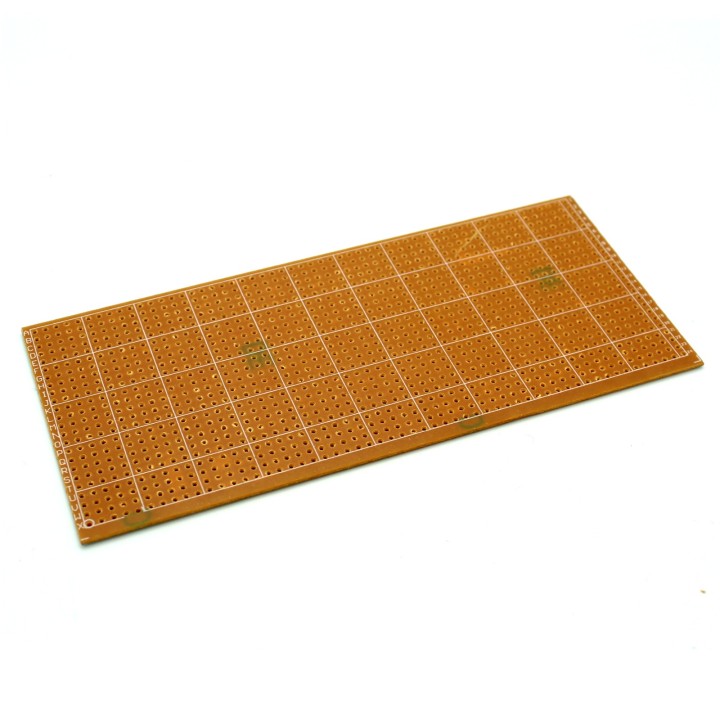

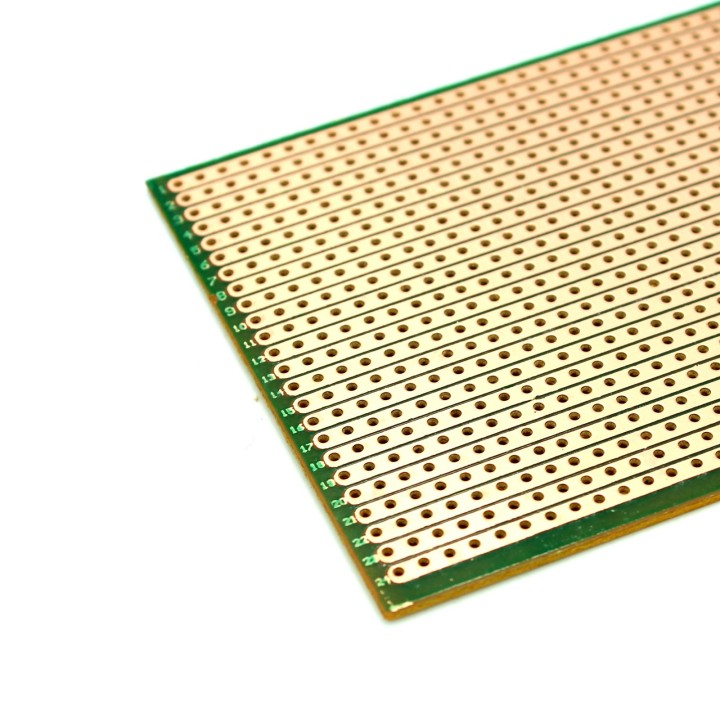

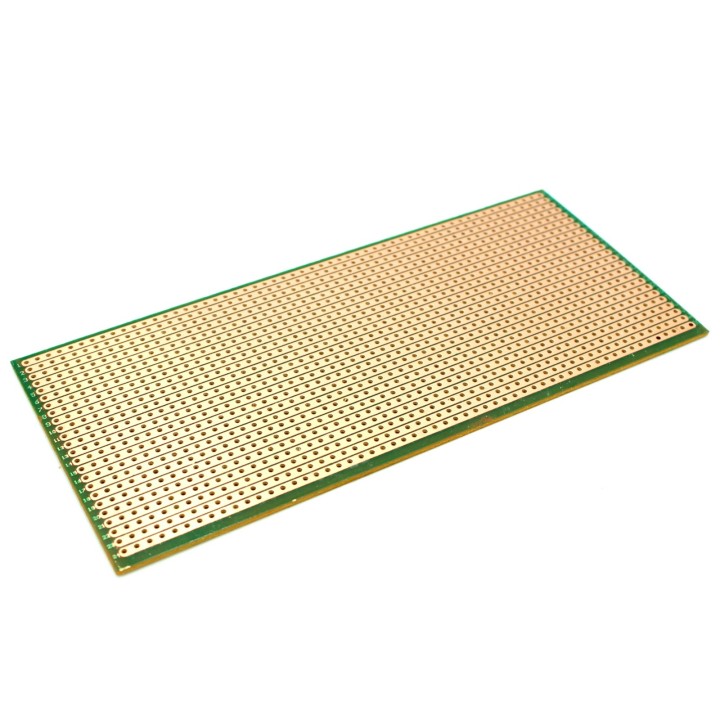

65x144mm Veroboard / Stripboard

65x144mm Veroboard / Stripboard where all the pins are connected in columns. To solder two pins together, just attach them on the same column.

More details

Availability: SHIPS TODAY

Last Updated: 12/24/2024

Tinkersphere

TA1258

$4.49

Have a question? 1 answered questions

Features:

  • Veroboard / Stripboard
  • Dimensions: 65mm x 144mm
  • Pins are connected in columns
  • 24 columns
  • Each column is 56 pins long
  • Surface Material: Copper
  • PCB Material: Bakelite
  • To connect two pins together, solder them on the same line / column
  • Pitch: 0.1" (2.54mm)
  • Hole diameter: 1mm
  • PCB Thickness: 1.5mm
Ask the community
What\'s the pitch and hole diameter?
The pitch is 0.1" (2.54mm) and hole diameter is 1mm.
Default User Icon Barney · 01/21/2023
Was this answer helpful? (0) (0)
