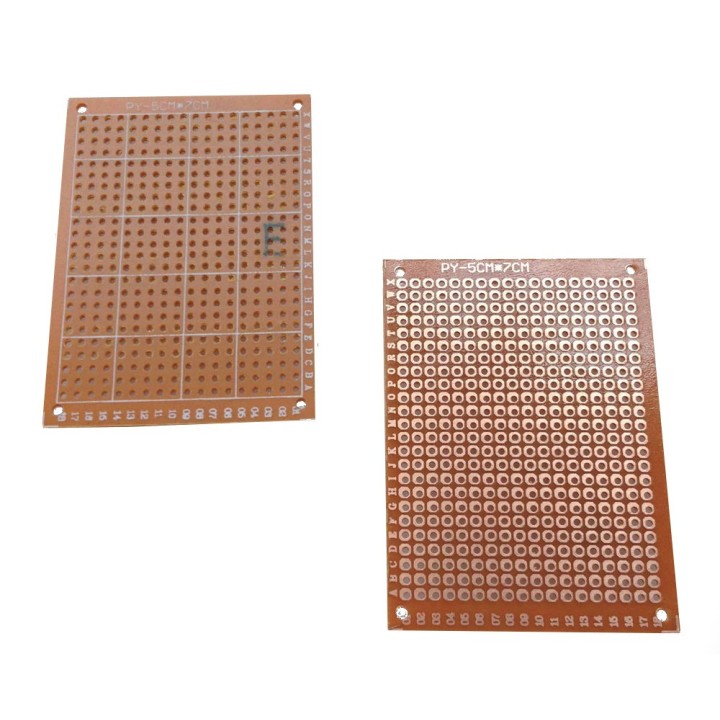

Perfboard Solder Prototype Board
This Perfboard Solder Prototype Board is a size 10, 1 7/8" x 2 5/16". The perfect solution for prototyping neatly by soldering your own circuit board!
Categories
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
Newsletter
Parts & ComponentsBreadboard / Perfboard PrototypingPerfboarding / SolderingPerfboard Solder Prototype BoardThis size 10 Perfboard Solder Prototype Board measures 1.875" x 2.3125". You can solder your own components onto this single sided copper-clad prototype circuit board to save space in your projects. After testing on a breadboard, transfer your circuit onto this Perfboard Solder Prototype Board to make it permanent, neat (you can decrease the amount of wires in your project), and save space by having your components side by side!
Features:

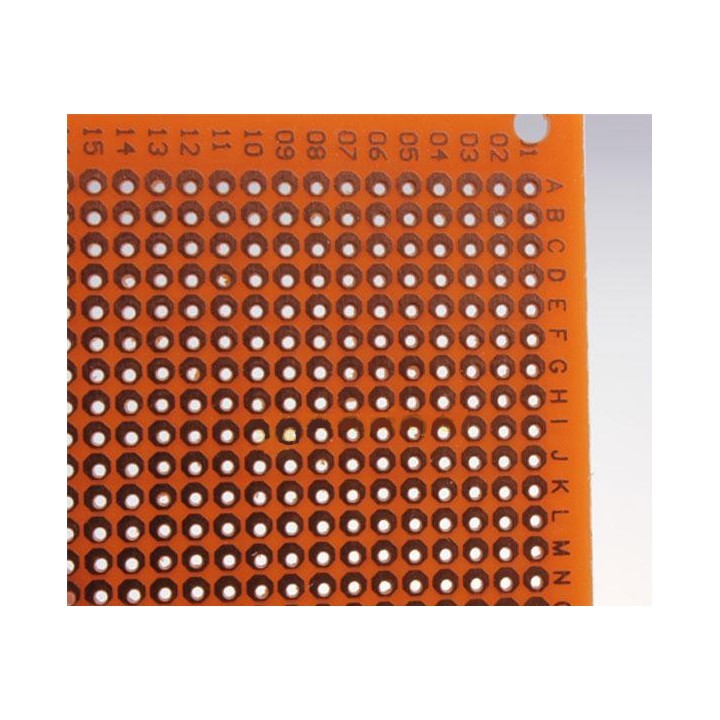

- Perforated one-sided copper-clad prototype circuit board
- Each hole is a solder point
- 0.1" / 2.5 mm spacing (compatible with our Breakaway Male Header Pins and Female Header Pins )
- Dimensions : 1 7/8" x 2 5/16" x 1/16" (49mm x 59mm x 1mm)
- Mounting Holes:
- Screw Size: #6 Screw
- Location: 1 1/2" x 1 15/16" (39mm x 50mm)
How can I connect two adjacent pins when making a circuit on this board?
Just jump them together by bridging some solder across the two pins.
Samuel · 11/20/2019
