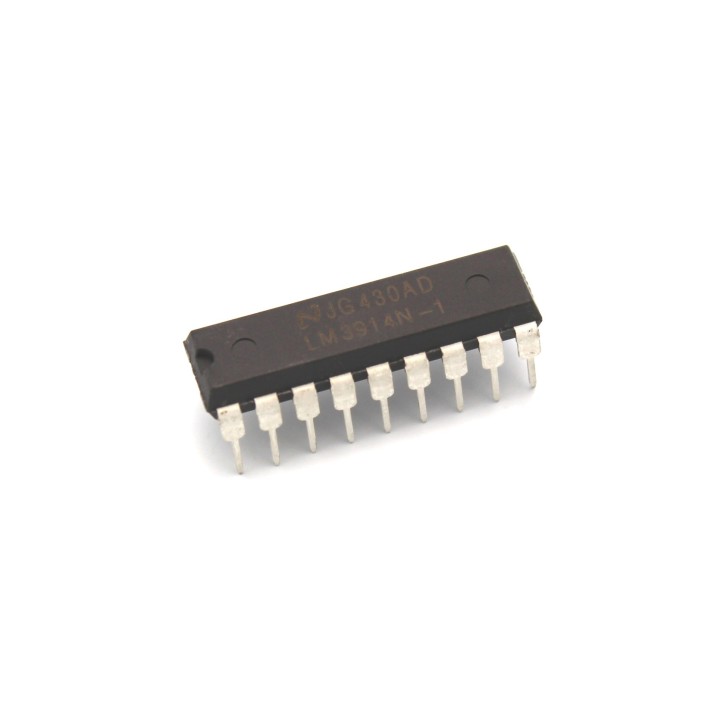

LM3914 LED Bar Dot Display Driver

LM3914 Driver chip for LED Bar Graphs. Converts a single analog signal to a digital bar graph display.

More details

Availability: SHIPS TODAY

Last Updated: 12/20/2024

Tinkersphere

TS-459

$2.49

Have a question? 0 answered questions

Features:

  • LM3914
  • Driver Chip for LED Bar Graphs
  • Control up to 10 LED segments at once
  • Operating Voltage: 3V - 15V DC
  • Num Channels: 10
  • Current per Channel: 10mA
  • Internal voltage reference
  • Programmable output current
  • Current drive to the LEDs is regulated and programmable, eliminating the need for resistors on the LED side
  • Works with: TS2422, TS2434, TS2435
