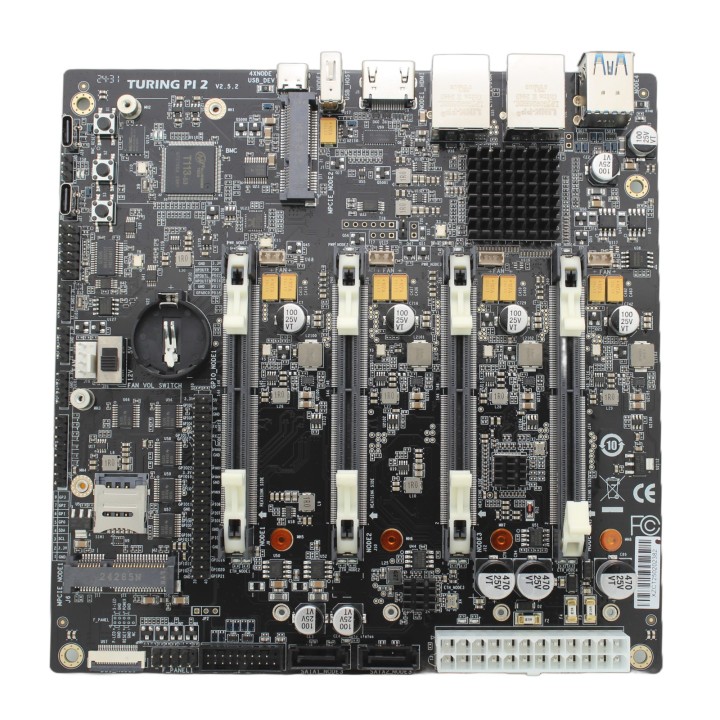

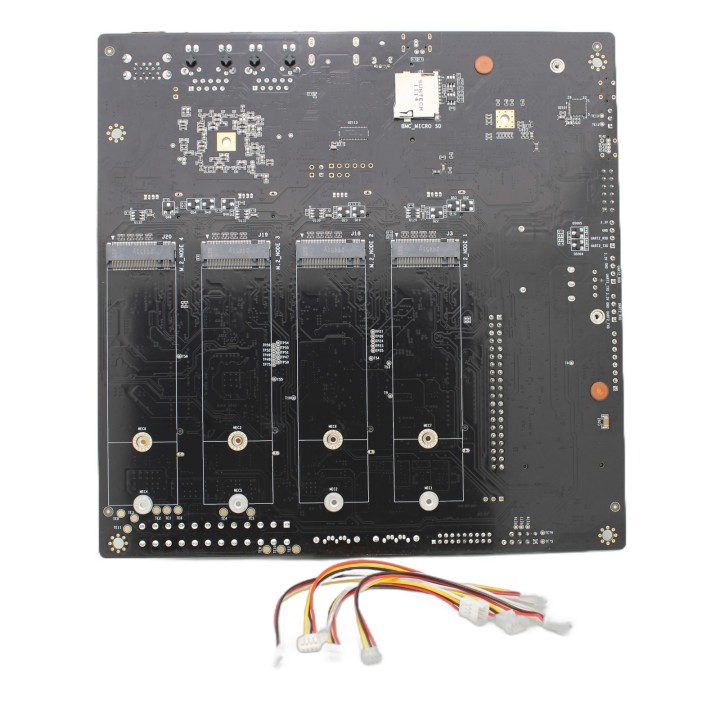

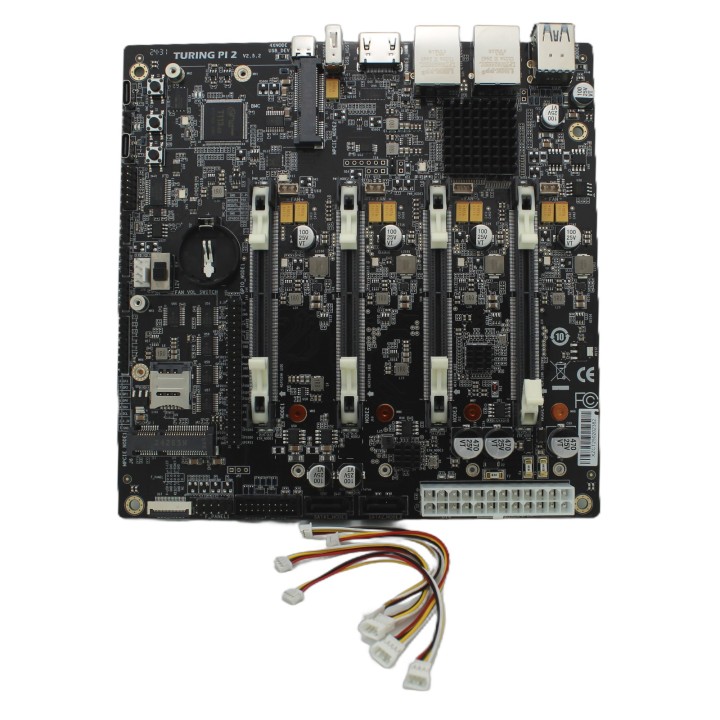

Turing Pi 2.5 Cluster Board for Turing RK1, Jetson Nano, CM4 Raspberry Pi Compute Modules

Turing Pi 4 Cluster Board for Turing RK1, Jetson Nano, Raspberry Pi CM4 Compute Modules. Plug in up to 4 Compute Modules to host Kubernetes, containers and cloud native apps locally! Useful for cluster applications, parallel computing, machine learning, distributed computing, docker swarm, serverless microservices, cloud app hosting, etc.

More details

Availability: SHIPS TODAY

Last Updated: 02/20/2025

Tinkersphere

TS3878

$358.99

Have a question? 0 answered questions

Turing Pi 2.5 for Raspberry Pi Compute Modules. Plug in up to 4 Turing RK1, Jetson boards or CM4 Raspberry Pi Compute Modules into this Turing Pi 2 Cluster Board. Plug in up to 4 RK1, Jetson or Raspberry Pi Compute Modules to host Kubernetes, containers and cloud native apps locally! Useful for cluster applications, parallel computing, machine learning, distributed computing, docker swarm, serverless microservices, cloud app hosting, etc. to host Kubernetes, containers and cloud native apps locally! Useful for cluster applications, parallel computing, machine learning, distributed computing, docker swarm, serverless microservices, cloud app hosting, etc.

Features:


Applications:
  • Home server (homelab) and cloud apps hosting
  • Learn Kubernetes, Docker Swarm, Serverless, Microservices on bare metal
  • Cloud-native apps testing environment
  • Learn concepts of distributed Machine Learning apps
  • Prototype and learn cluster applications, parallel computing, and distributed computing concepts
  • Host K8S, K3S, Minecraft, Plex, Owncloud, Nextcloud, Seafile, Minio, Tensorflow

Works with the following Raspberry Pi Compute Module models:
  • Turing RK1
  • Jetson Boards:

Includes:
  • Turing Pi 2.5.2 Board

Note: Power Supply, Power Cable, CM4 Carrier Boards and Raspberry Pi Compute Modules sold separately.

Turing Pi 2.5 Improvements on Turing Pi 2.4:

  • Mini PCIe USB interface connected to USB1.
  • Internal USB hub for multiple flashing.
  • USB-A replaced with USB-C for flashing.
  • Added USB-A port on Node 1.
  • Onboard USB-UART converter for BMC.
  • New 8-pin header for I²C/GPIO.
  • Nodes stay powered during BMC restart.
  • Removable Mini PCIe/M.2 studs.
  • Improved HDMI support for 4K.
  • Enhanced SATA compatibility in Node 3.
  • Added case PWM header (BMC-controlled).
  • Doubled BMC flash capacity (256MB).
  • FEL Mode button for firmware recovery.
  • Network switch mode toggle added.
  • Improved power efficiency, reduced noise.
  • GPIO header updated (pin 17).
  • RTC battery fix integrated onboard.
