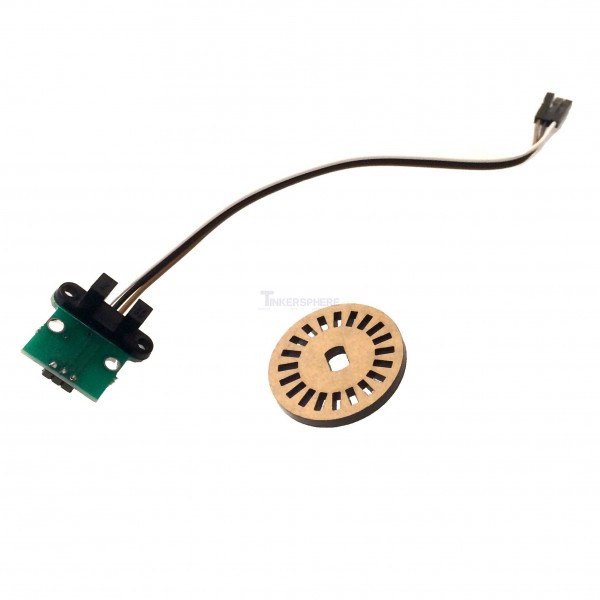

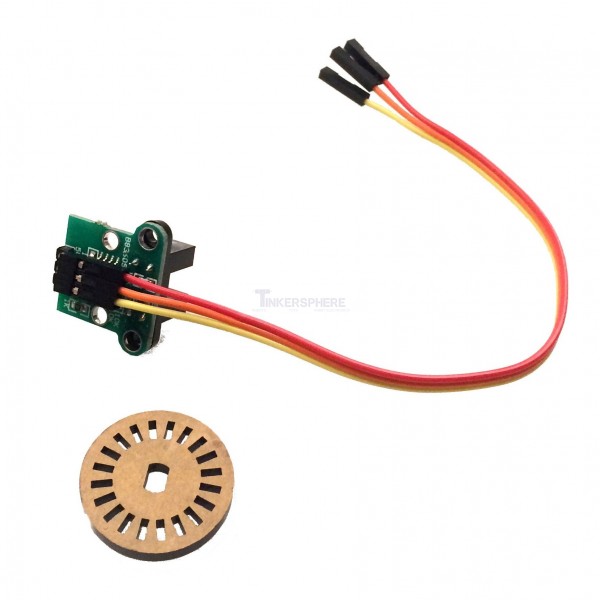

Rotary Encoder & Wheel Set

Meaures the number of rotations your wheels make with this rotary encoder & wheel set. Useful for ensuring your robot has error correction to keep on a 100% straight path! It works by having an infrared light beam shine between the 2 black pegs on the encoder. As the wheel rotates and intercepts the light beam, your signal will alternate between High and Low.

Features:

• Number of notches per wheel: 20
• Input Voltage(VCC): 4.5V to 5.5V DC
• Input Current: 25mA
• Measurement Frequency: 100 kHz
• Signal Output: Square Wave (GND to VCC)
• Encoder Size: 24mm
• Includes: 1 wheel and 1 encoder
• Pinout:
  • 5V: Power
  • GND: Ground
  • OUT: Signal (to your Arduino or other microcontroller)
• Encoder wheels fit great on:
  • TS-322
  • TS1088
  • TS1087
  • Motors in TS-429 Robot Chassis
