SpringRC SM-S4303R Continuous Rotation Servo Maximize

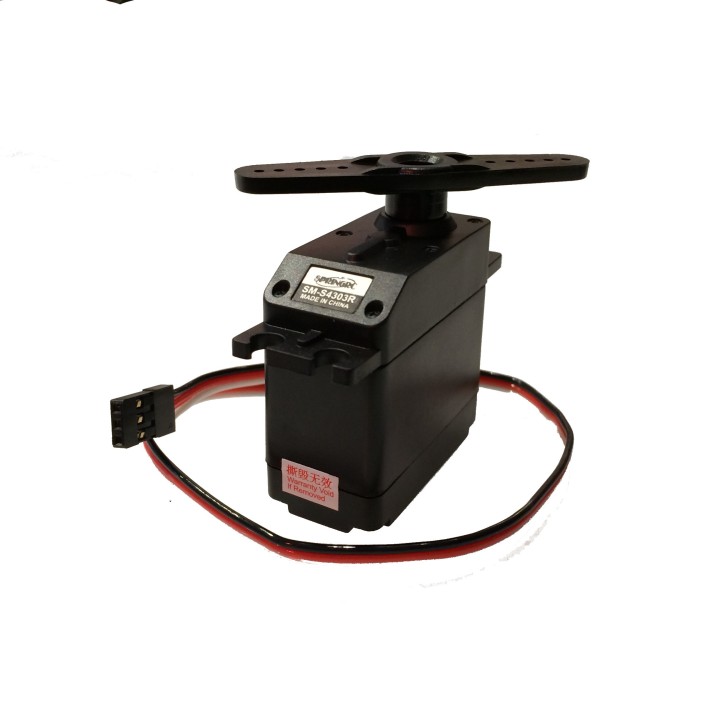

SpringRC SM-S4303R Continuous Rotation Servo

This Continuous Rotation Servo is perfect for Robots including the Windows 10 Raspberry Pi Robot! Continous Rotation means it can spin more than 360 degrees while giving you speed control!

More details

Availability: SHIPS TODAY

Last Updated: 03/29/2024

Tinkersphere

TS-956

$12.99

This Continuous Rotation Servo Motor is a great addition to any project. Use this servo when you need a servo motor that can spin continuously. Simple to interface with Arduino and is the servo used in the Windows 10 Powered Raspberry Pi 2 Robot!

  • 360 degree rotation
  • Dimensions: 41.3 × 20.7 × 40.2 mm
  • Operating Speed: 0.18 sec/60 degrees @6V / 0.23 sec/60 degrees @4.8V
  • Stall Torque: 5.11 kg-cm / 71 oz-in (6V); 3.31 kg-cm / 46 oz-in (4.8V)
  • Operating Voltage: 4.8 - 6 Volts
  • White: Signal, Red: Vcc, Black: GND
  • Lead Length: 11 inch
  • Weight: 41 g
  • Included:
    • 1 Servo Motor
    • 1 Long Double Sided Straight Arm (2 1/4" Long)
    • 1 Short Double Sided Straight Arm (1 1/2" Long)
    • 1 Large Round Horn (1 13/16" Diameter)
    • 1 Small Round Horn (11/16" Diameter)
    • 1 Four-Point Horn (1 9/16" Long)
    • 1 Six-Point Horn (1 1/4" Long)
    • 1 Phillips Head Screw
    • 4 Pan Head Screws
    • 4 Rubber Grommets
    • 6 Metal Eyelets
