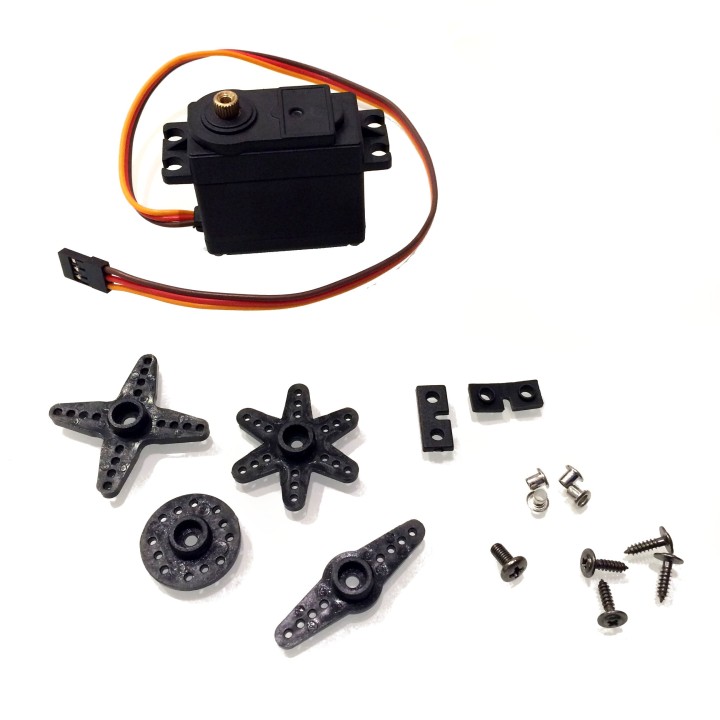

Metal Gear Servo 15kg / 4.8-7.2V

This Standard 180 degree metal gear servo motor is perfect for your robot arm, model airplane rudder, or any project that needs a motor with the ability to rotate back and forth to a specific degree within the range of 180 degrees while having the extra durability of metal gears that won't wear down as fast over time!

More details

Availability: IN STOCK

View Product Location Store Map
Tinkersphere

TS-763

$13.99

This standard metal gear 180 degree servo is a great addition to any project where you want the extra torque and durability of metal internal gears which will last longer than nylon gears that may wear away after many uses. Use this servo when you need a servo motor that has extra durability and has more torque than small micro-servos while still carrying the precision to move to any degree angle you command it to within the full range of 180 degrees. Simple to interface with Arduino or any other microcontroller!

  • Metal Gears
  • 180 degree rotation

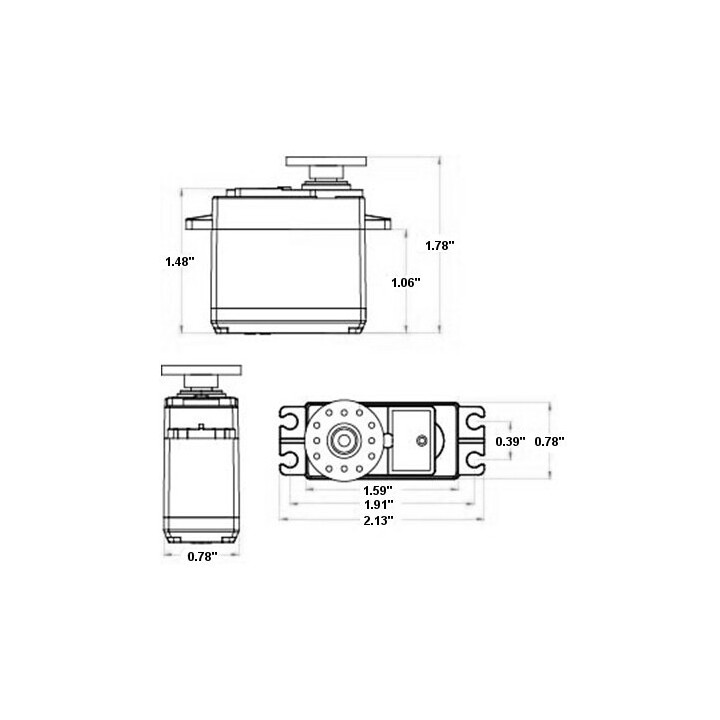

  • Dimensions: 43 x 40 x 19mm
  • Operating Speed: 0.17 sec/60 degrees (at 4.8V); 0.13 sec/60 degrees (at 6V)
  • Stall Torque: 15 kg-cm / 208.3 oz-in (at 6V); 13 kg-cm / 180.5 oz-in (at 4.8V)
  • Operating Voltage: 4.8 - 7.2 Volts
  • Yellow: Signal, Red: Vcc, Brown: GND
  • Wire Length: 11.81" (300mm)
  • Max Stall Current: 1.5A
  • Driving Spline Threading Size: M3
