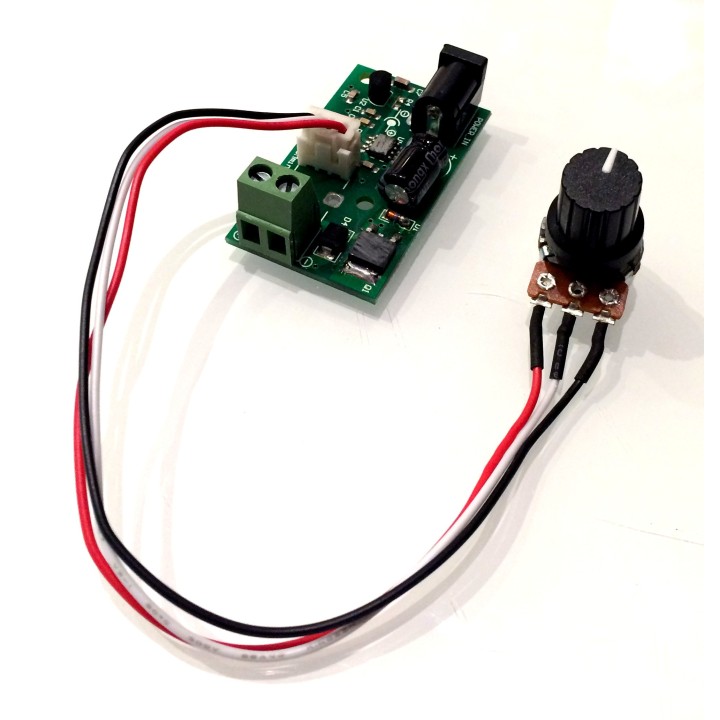

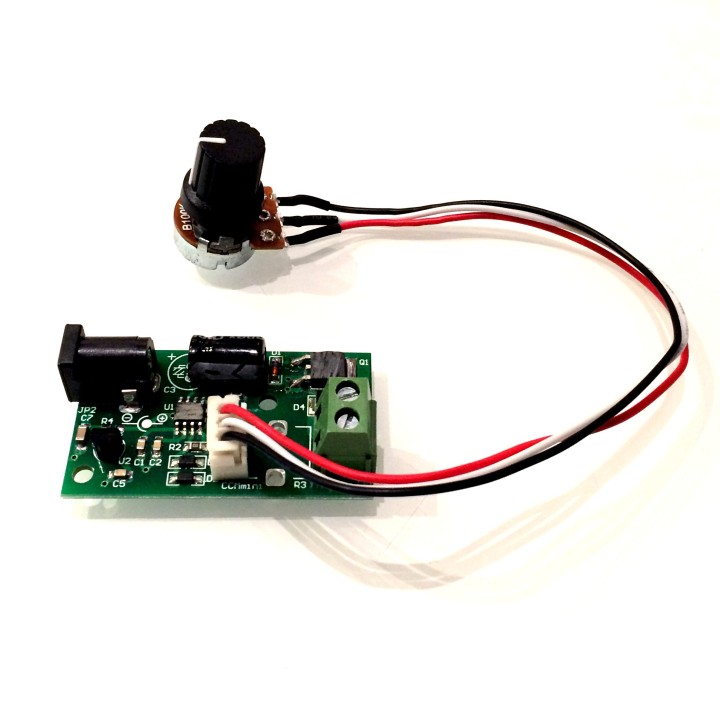

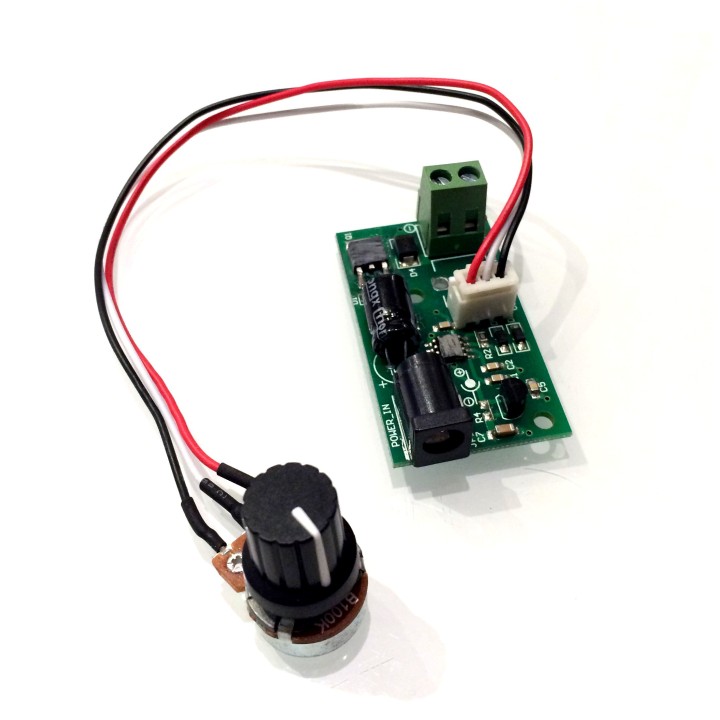

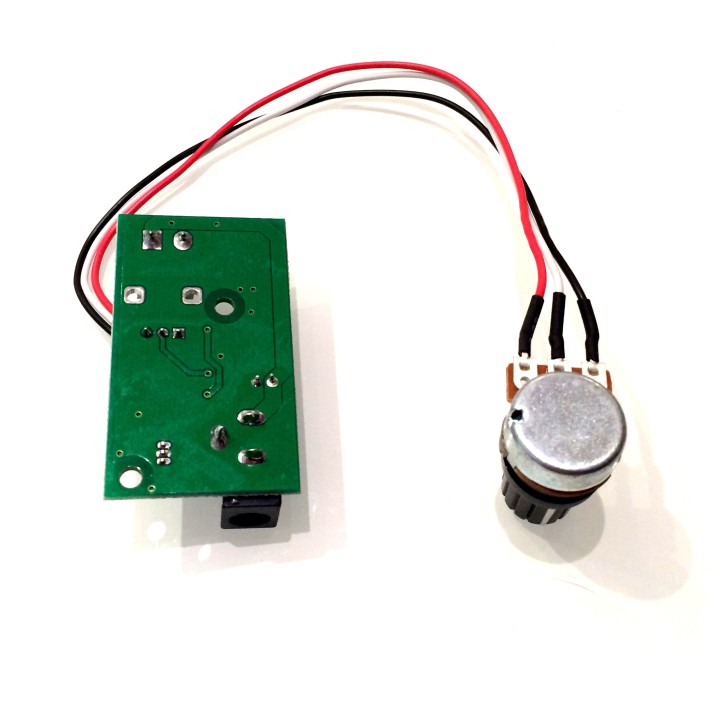

DC Motor Speed Controller: 6V-28V 3A

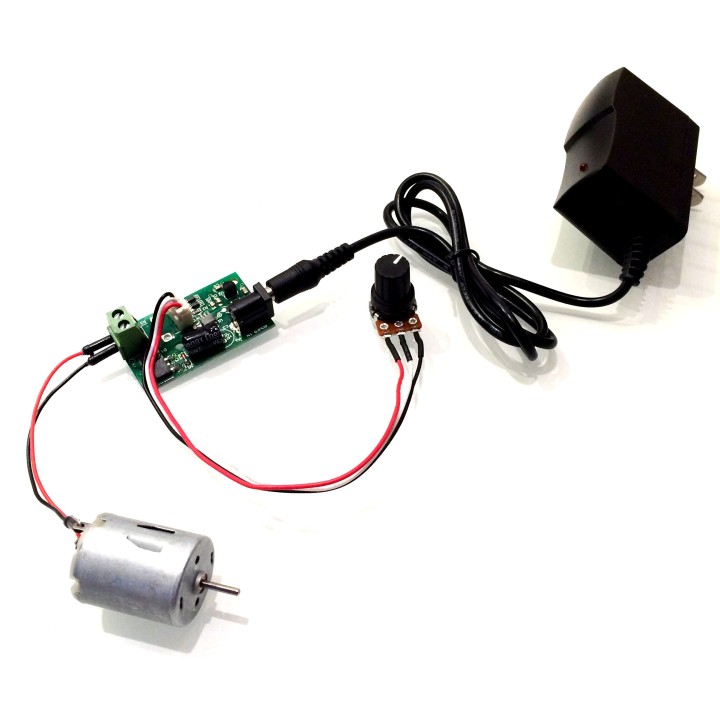

Need to add a motor to your project? This is the easiest way possible! Just plug both wires from your motor into the 2 scew terminals and plug a Wall Power Adapter between 6V and 28V to the Power input. That's it! Turn the knob to speed up or slow down your motor.

More details

Availability: PRE-ORDER

Availability date: 10/26/2024

Last Updated: 10/10/2024

Tinkersphere

TS-450

$10.99

This DC Motor Speed Controller is the perfect solution for adding a simple motor with adjustable speed to your projects. It emits a PWM (Pulse Width Modulated) signal that varies between 5% and 100% when the knob is turned. A PWM signal is a signal comprised of pulses that fluctuate between on and off. When the knob is turned all the way down, the signal is on 5% of the time and off 95% of the time, which makes your motor run slowly. When the knob is turned up, the amount of time the signal is on increases, thus speeding up your motor until the knob is turned all the way up and the signal is on 100% of the time. Popular for art installations, automation projects and anywhere else you may simply want to add something that spins with ease.

Specifications:

  • Power Input:
    • Voltage: Between 6V and 28V (we recommend this 12V DC Adapter)
    • Jack Size: 5.5mm outer x 2.1mm inner
  • Max Output Current: 3A
  • PWM Duty Cycle: 5% - 100%
  • PWM Frequency: 21kHz
  • Size (L*W*H): 50 x 29 x 16mm / 1.97"x 1.14"x 0.63"
  • Cable length: Approx 200 mm / 7.88"
  • Can be used to control:
    • Speed on DC Motors
    • Speed on Linear Actuators
    • Speed on DC Fans
    • Can also be used to dim LED lights that take power between 6V and 28V!
    • any other device that takes a PWM signal
