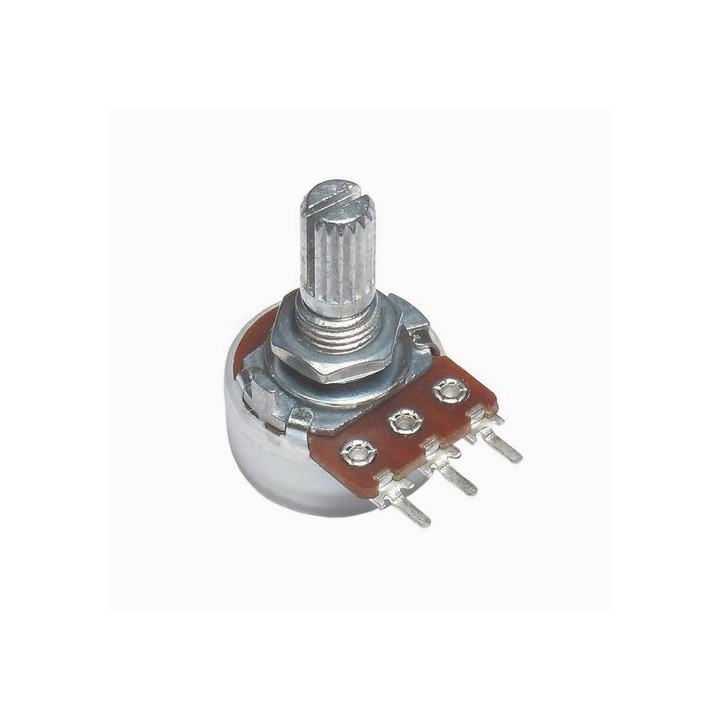

A10K Logarithmic 10K Pot

Name: A10K Logarithmic 10K Pot
Brand: Tinkersphere
SKU: TS1293
Price: 2.99 USD
Availability: InStock

Tinkersphere

$2.99

A10K Logarithmic Potentiometer with value 10K ohms. As you turn the knob, the resistance will increase logarithmically so at the halfway point volume will be moderate and increase sharply as you keep turning up.

✅SHIPS TODAY

Features:

Logarithmic Potentiometer
Resistance: 10K ohms
Metal frame

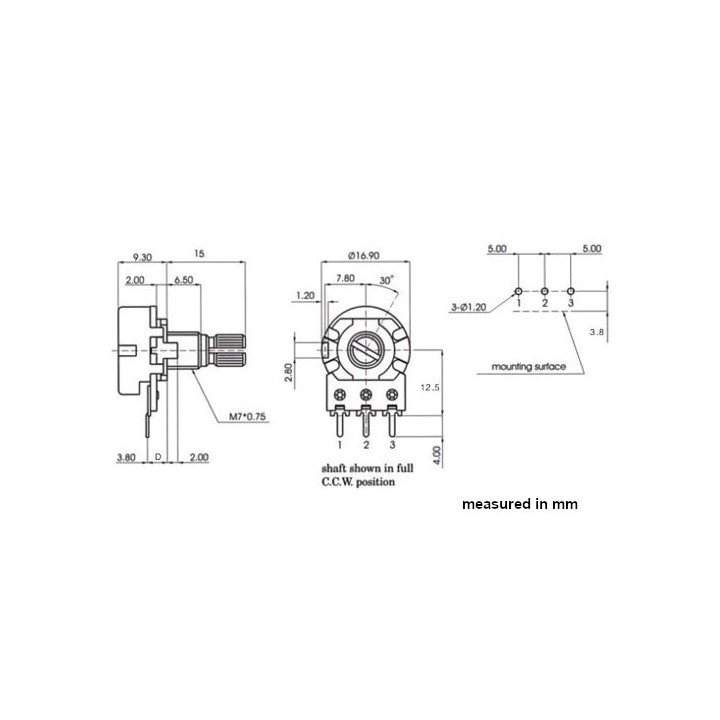

Shaft Length: 15mm
Shaft Diameter: 6mm
Body Diameter: 16.9mm
Body Height: 9.3mm
Shaft Type: Knurled / slotted
Washer and Mounting Nut Included
A10K Potentiometer
As you turn the knob, the resistance will increase logarithmically so at the halfway point volume will still be moderate and then it will increase sharply as you keep turning up the volume. This is better received by the human ear than linear volume knobs.
