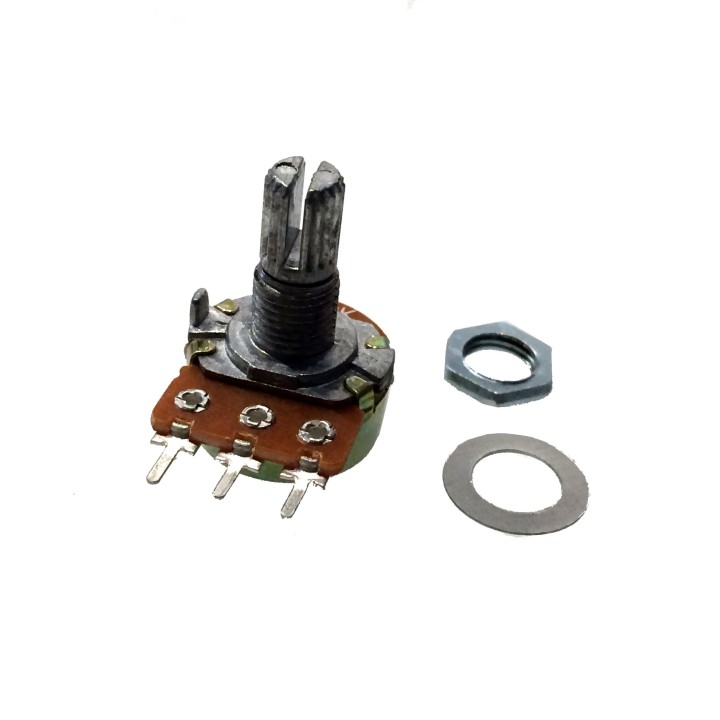

B50K Linear 50K Ohm Taper Potentiometer images
B50K Linear 50K Ohm Taper Potentiometer
Price:
$2.99
Use this B50K Linear Taper Pot to get a variable resistance rated to 50K Ohms when the knob is turned. Useful for Radio Transmitter repairs, guitar pedals, electric guitars etc.
This B50K Linear Taper Pot is great for getting variable resistance! Just turn the knob and the resistance will vary on the 3 output pins. Since the pins are straight, it's easily mountable on a breadboard with the shaft being off the side.

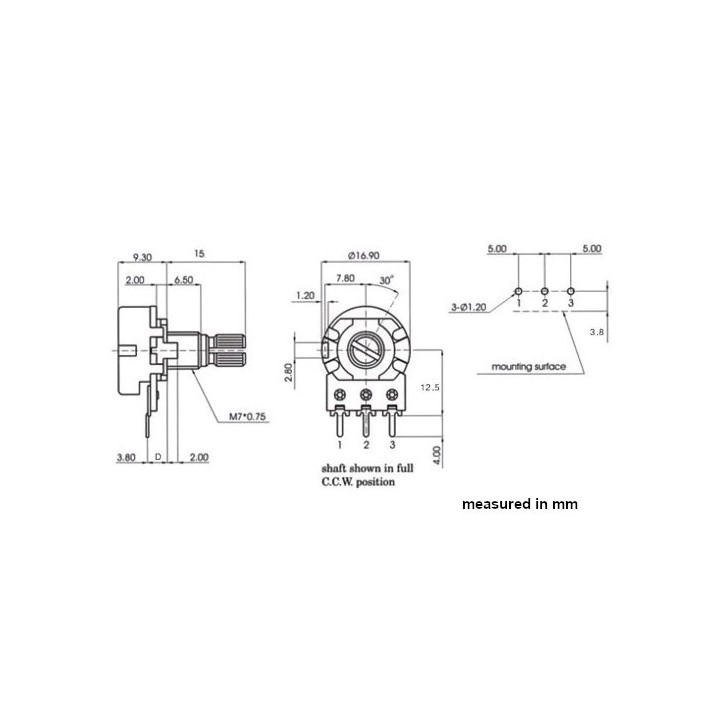

Specifications:
- Pin Type: Straight
- Shaft Type: Round
- Potentiometer Value: 50K Ohms
- Linear Taper
- Knob: 6mm diameter, round
- Shaft Length: 15mm
- Shaft Diameter: 6mm
- Body Diameter: 16.9mm
- Body Height: 9.3mm
- Includes:
- B50K Potentiometer
- Washer
- Mounting Nut
Â
-
Brand
-
ReferenceTS1484
-
In stock91 Items
