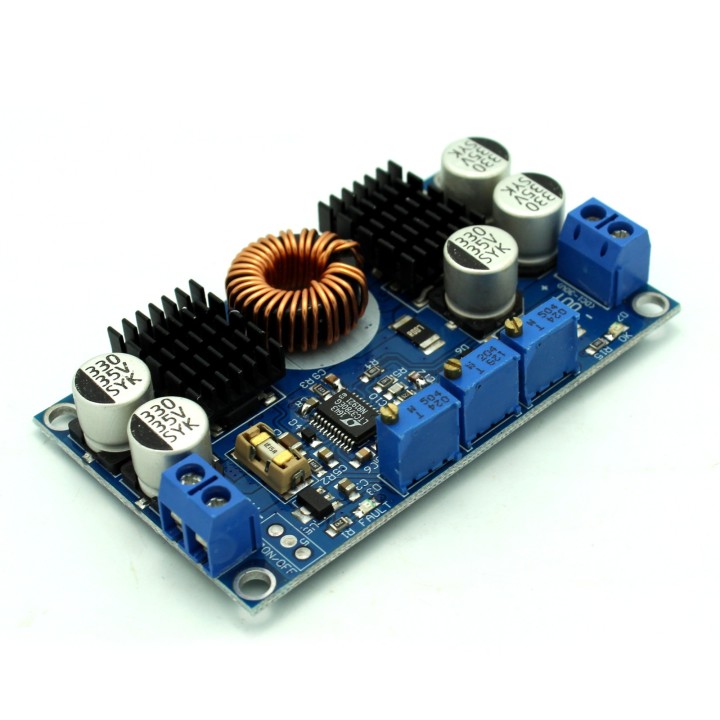

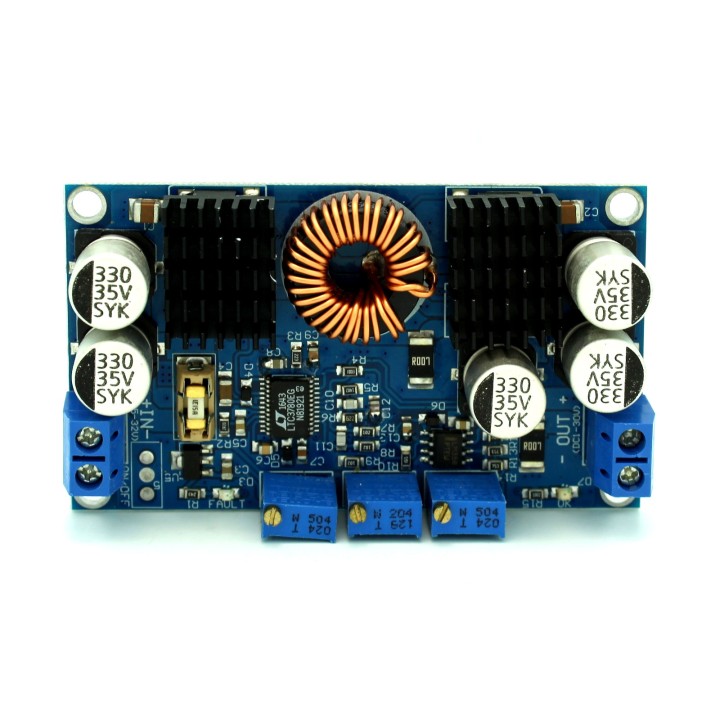

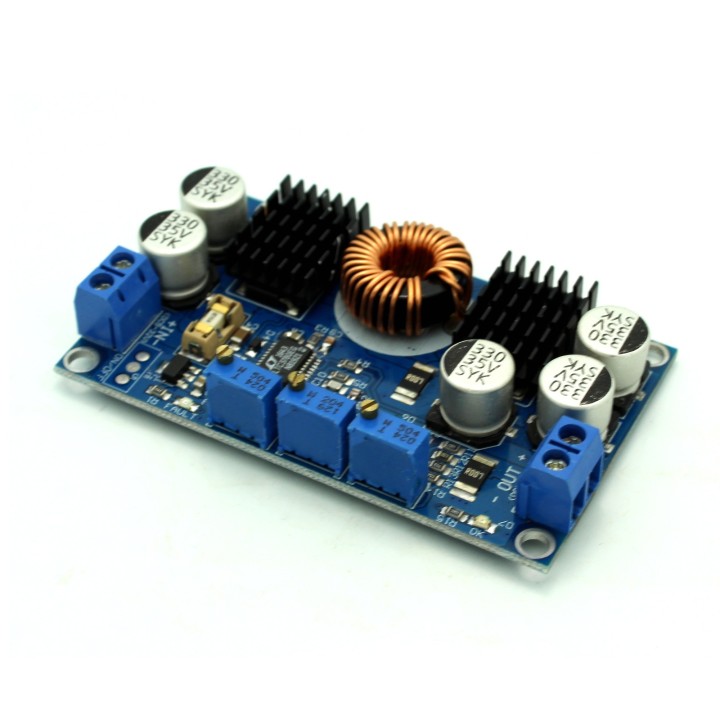

Automatic Step Up Down Charging Module DC 5V-32V to 1V-30V 10A LTC3780 Regulator

With this DC-DC Step Up Down Regulator Module you can maintain a certain the voltage even if your voltage goes above or dips below the desired output voltage! Maintain a steady voltage by setting the desired output from 1V to 30V!

More details

Availability: SHIPS TODAY





  • Adjustable Output Voltage
  • Maintain a steady voltage even when using an unreliable power source
  • Whatever the input voltage is, the output voltage can be maintained constant. For example, for an output of 12V, the input voltage can be anywhere from 5V to 32V and it will be automatically regulated up or down as necessary.
  • Can step up the voltage as well as regulate down the voltage
  • Wide input and output voltage, high conversion efficiency.
  • Maximum output current: 10A peak ( 8A steady )
  • Input voltage: 5 v - 32 v
  • Output voltage: 1 v - 30 v (default is set to 12 v)
  • Output power: 80W, peak 130W (when above 80W increase heat dissipation to prevent overheating)
  • Output ripple: 50mV (12V turn to 12V, 5A measured)
  • Short circuit protection
  • Operating temperature: -45C to 85C
  • Size: 76.5mm * 45mm (L * W)
  • This module is a step-up and step-down module, the input voltage can be less or greater than the output voltage
  • Replaceable fuse on the input so it can be replaced if needed
  • Constant voltage, constant current, under voltage protection
  • Output Indicator LED will illuminate when the output voltage drift is too drastic, short circuits, or other issues.
