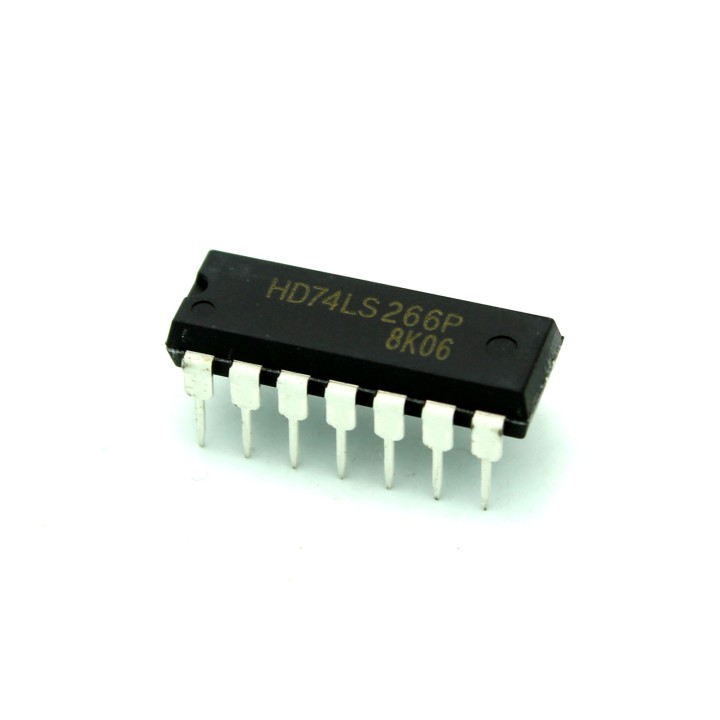

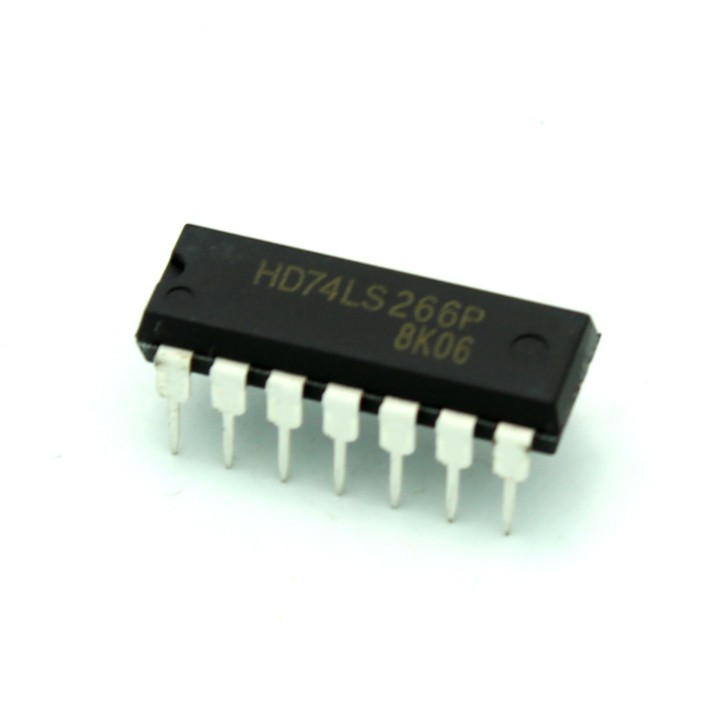

XNOR Gate: 74LS266
This chip includes 4 basic digital logic XNOR gates. Each XNOR gate takes in 2 inputs and gives out a HIGH output if input 1 OR input 2 is are the same (both HIGH or both LOW) but not one or the other.
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
Specifications:
- Basic XNOR (Exclusive NOR) Gate IC
- Operating Voltage: 2V - 6V
- 4 2-input XOR Gates on-chip

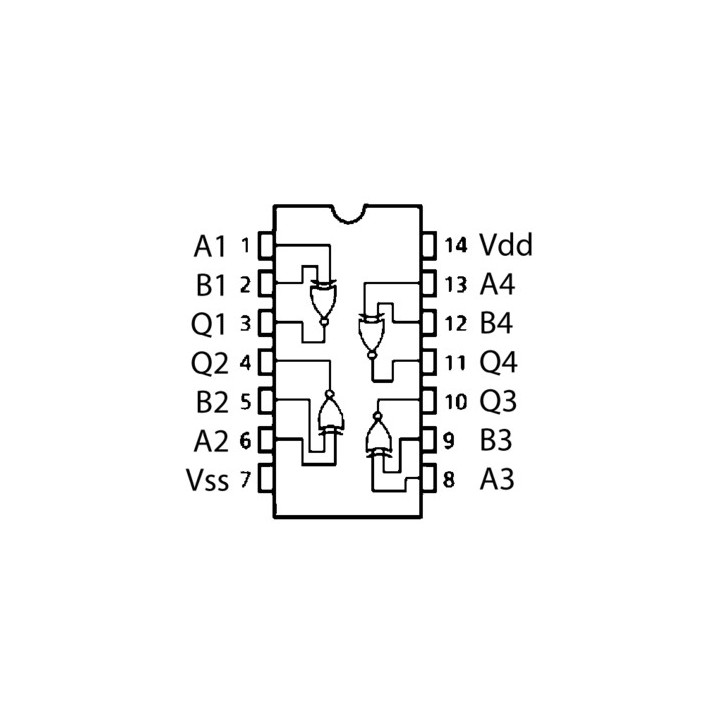

- Pinout:
- XNOR GATE Number 1:
- Pin 1 & 2: Inputs
- Pin 3: Output
- XNOR GATE Number 2:
- Pin 5 & 6: Inputs
- Pin 4: Output
- XNOR GATE Number 3:
- Pin 8 & 9: Inputs
- Pin 10: Output
- XNOR GATE Number 4:
- Pin 12 & 13: Inputs
- Pin 11: Output
- Power:
- Pin 14
- Ground:
- Pin 7
Click here to download the datasheet.
