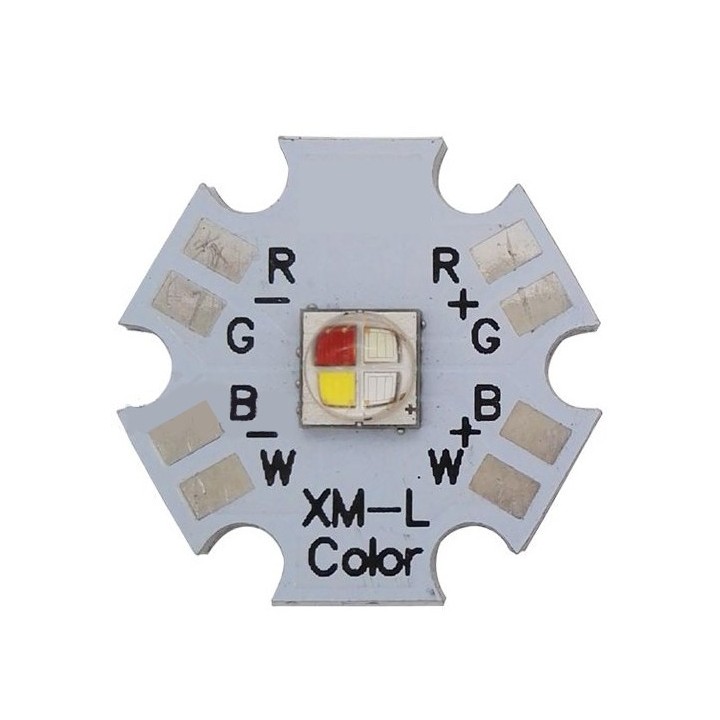

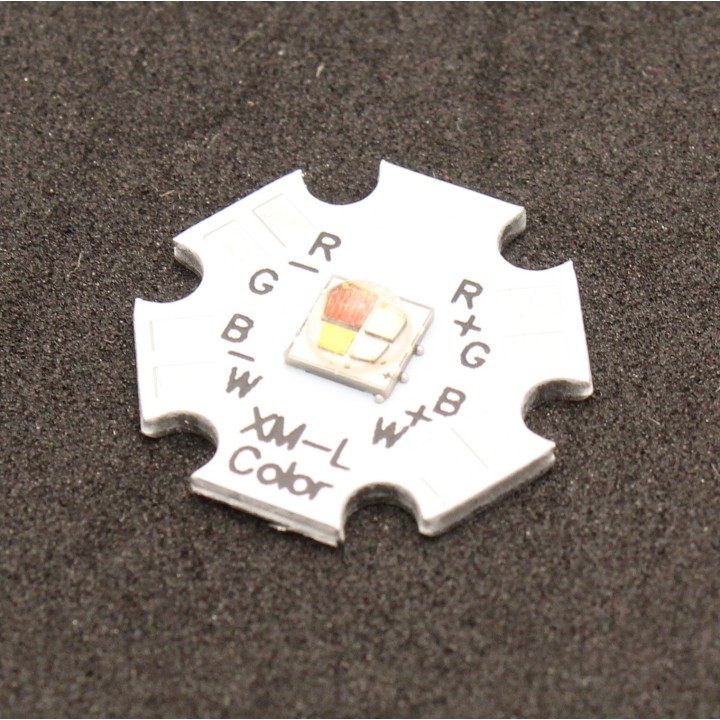

10W RGBW LED with Heat Sink

This 10 Watt High Power RGBW LED is useful for making colorful flashlights, headlamps, robot headlights etc. Just connect to a battery to any combination of Red, Green, Blue and White terminals for a very bright colored light.

More details

Availability: SHIPS TODAY

Last Updated: 03/19/2024

Tinkersphere

TS2704

$14.99

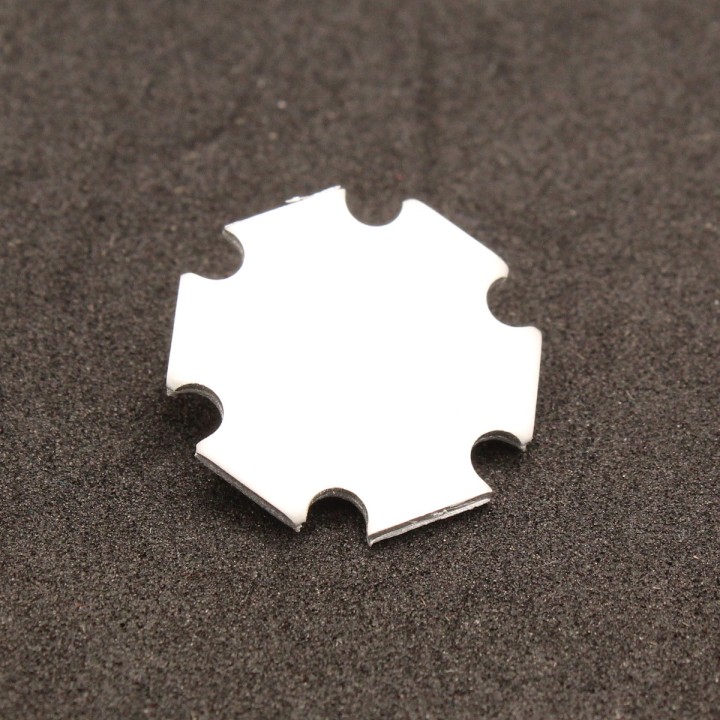

This 10 Watt RGBW LED is just what you need to add a very bright, high intensity light into your projects. You can set it to virtually any color by powering a combination of the 4 terminals, one each for Red Green Blue and White. Soldered onto a 20mm metal plate to dissipate any excess heat as a heatsink, this LED provides high brightness without heating up!

Specifications:

  • LED Size: 5mm on 20mm Heatsink Board
  • Luminous Intensity: Red 87.4 lumens, Green 114 lumens, Blue 39.8 lumens, White 100 lumens
  • Forward Voltage: Red 2.25~2.6V, Green 3.3~3.9V, Blue 3.1~3.7V, White 3.1~3.7V
  • Viewing Angle: 120 degrees
  • Number of Input Pins: 8
  • Inputs:
    • R+: Red Power
    • R-: Red Ground
    • G+: Green Power
    • G-: Green Ground
    • B+: Blue Power
    • B-: Blue Ground
    • W+: White Power
    • W-: White Ground
  • Color Temperature:
    • Red 620~630nm
    • Green 520~535nm
    • Blue 450~465nm
    • Warm White 3000-3200K
  • Forward Current: 1A
  • Lens Type: Water-clear
  • Power Dissipation: 10W
  • Low thermal resistance: 3.5°C/W
  • Maximum junction temperature: 150°C
  • ESD Withstand Voltage: 8000V
  • Reflow solderable - JEDEC J-STD-020C
