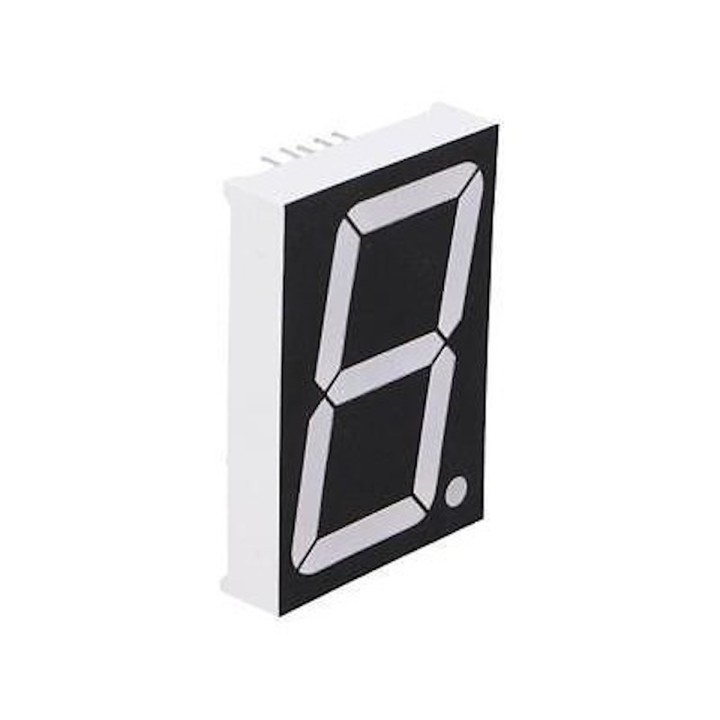

Large 1.8" Single Digit Segment Display - Super Bright Red

Jumbo sized Single Digit LED Display measuring 1.8 inches. Super Bright Red.

More details

Availability: SHIPS TODAY

Last Updated: 03/04/2024

Tinkersphere

TS-854

$5.99

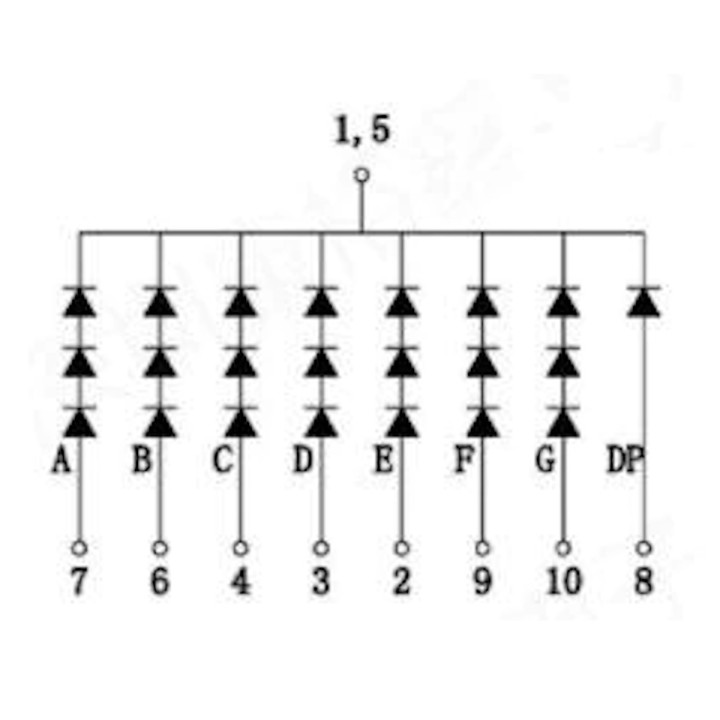

This super bright red single digit segment display with decimal point is best used for projects where you'd like to display a number such as adding a clock to your project, displaying the status of your project, displaying user inputs for interactivity, and much more. This is a thru-hole common cathode single digit that has 10 pins. This means that in order to light up a segment, all you have to do is apply power to any one of the pins for each of the 7 segments/decimal point that make up the number/letter, and for the two center common cathode pins (aka ground).

Specifications:

  • Number Display Height:1.8"
  • Common Cathode
  • Color: Red
  • Continuous Forward Current: 20mA
  • Average Forward Voltage: 2V
  • Power Consumption: 36mW
  • Luminous Intensity: 11mcd

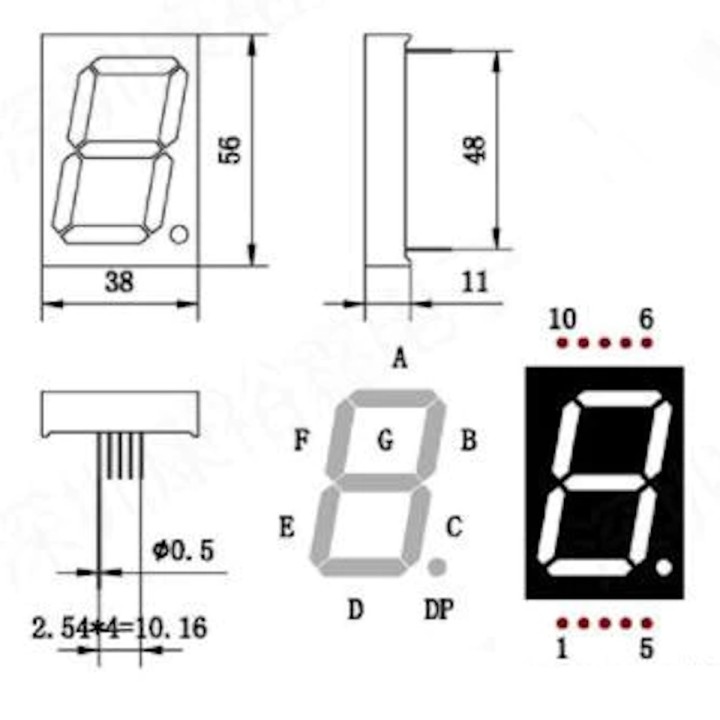

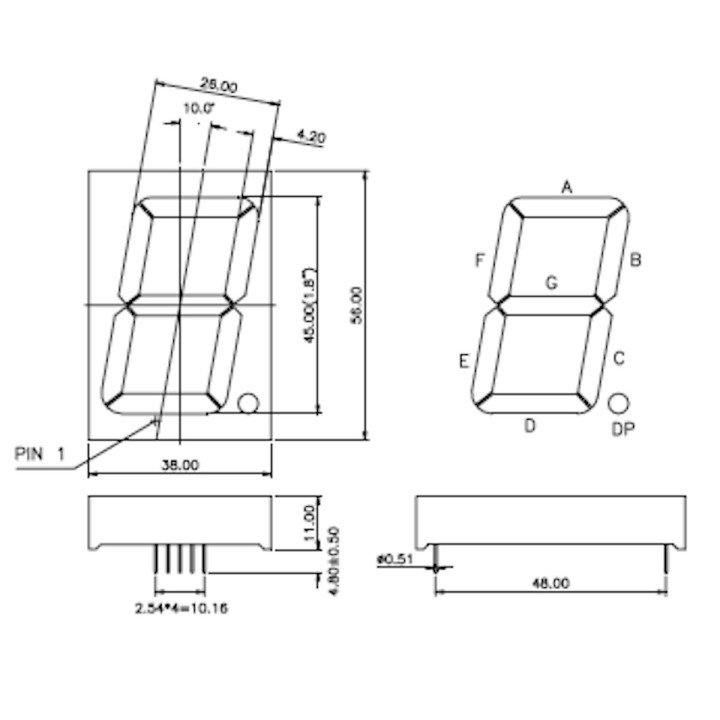

  • Dimensions: 2.2 x 1.5 x 0.63 inch (L*W*H) (56 x 38 x 16mm)
