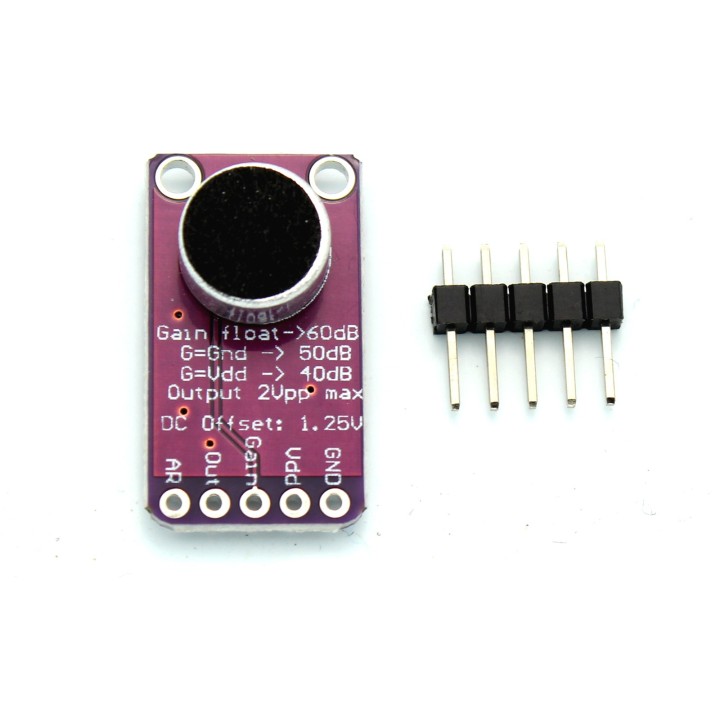

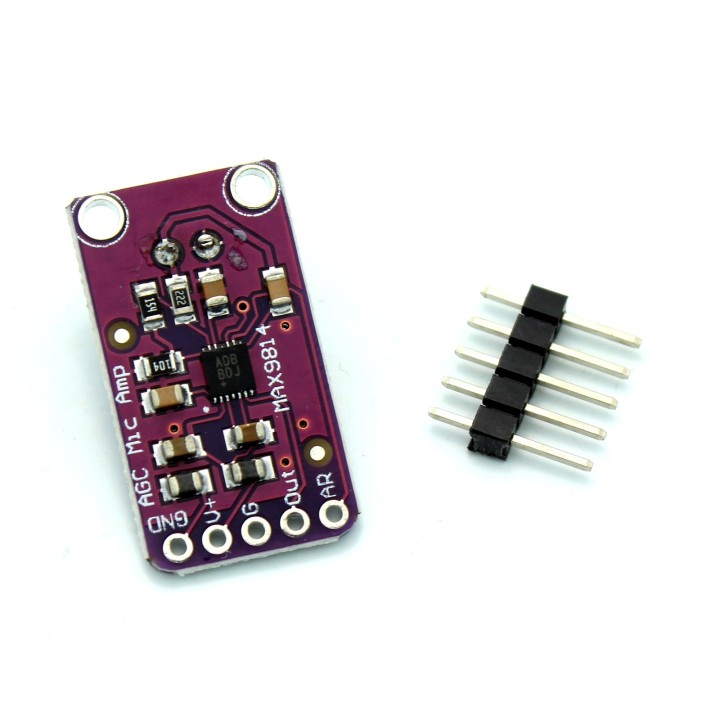

Electret Microphone Amplifier - MAX9814 with Auto Gain Control
Add audio input to your arduino projects with this mic + amplifier board. Takes in sound via the onboard mic and amplifies it right on board!
Categories
- All products
- Robots
- Parts & Components
- Motors & Wheels
- Breadboard / Perfboard Prototyping
- Components
- Arduino
- BeagleBone Micro PC
- Raspberry Pi
- Sensors
- Cables & Wires
- Batteries & Holders
- Enclosures / Storage
- Power
- Electronic Experiment Kits
- Wearable Electronics
- Audio
- LED Lighting
- LCD Screens
- Wireless Modules
- 3D Printer Parts & Supplies
- PCB Fabrication Supplies
- Mounting Hardware
- Fiber Optics
- Cell Phone Accessories
- Keyboards and Mice
- Hard Drives & Memory Sticks
- Electronics Tools
- Soldering Kits
- Novelties
- Tinkering Apparel
- Young Tinkerers
- Books
- Crafts
- Office / School Supplies
Newsletter
Parts & ComponentsArduinoArduino Compatible ComponentsElectret Microphone Amplifier - MAX9814 with Auto Gain ControlFeatures:
- Chipset: Max9814
- Takes in sound via the onboard mic and outputs amplified audio
- Low output noise
- Small package
- High sensitivity
- Default gain: 60dB (can also be adjusted to 40dB or 50dB by connecting the Gain pin to VCC or GND)
- Default attack/release ratio: 1:4000 (can also be adjusted to 1:2000 or 1:500 by connecting the AR pin to VCC or GND)
- 20-20KHz Electret Microphone onboard
- Operating voltage: 3.3V
- Output Type: Analog
- Size: 25 x 9mm x 8mm high
- Arduino Compatible (connect VCC pin on microphone to 3.3V, GND to GND and Out pin to A0)
