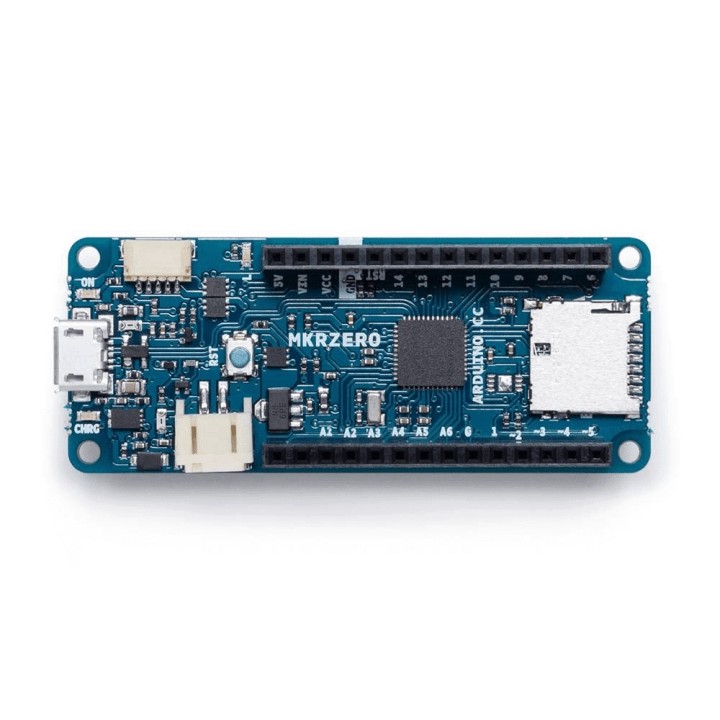

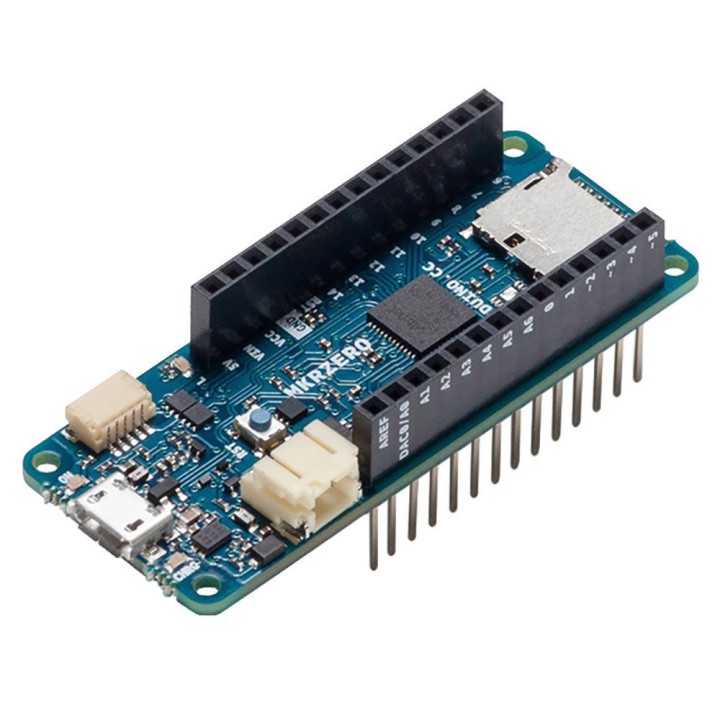

MKR Zero Arduino

The MKR Zero is an Arduino board with an sd card reader built in so you can play music files without extra hardware. Runs at 3.3V. Programmed via Arduino IDE.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS2876

$33.99

Have a question? 0 answered questions

Features:

  • MKR Zero Arduino Board
  • With integrated Micro SD Card Slot
  • Perfect for music projects
  • Chipset: SAMD21 Cortex-M0+ 32bit low power ARM MCU
  • Operating Voltage: 3.3 V
  • USBInput Voltage: (recommended) 5 V
  • Lipo Port: Supports 3.7V Lipo batteries, 700mah minimum
  • DC Current for 3.3V Pin 600mA
  • DC Current for 5V Pin 600mA
  • Digital I/O Pins: 22
  • PWM Digital I/O Pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
  • Analog Input Pins: 7 (ADC 8/10/12 bit)
  • Analog Output Pins: 1 (DAC 10 bit)
  • External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
  • DC Current per I/O Pin 7 mA
  • Flash Memory: 256 Kb
  • Flash Memory for Bootloader 8 Kb
  • SRAM: 32 Kb
  • Clock Speed: 32.768 kHz (RTC), 48 Mhz
  • LED Builtin 32
  • Full-Speed USB Device and embedded Host
  • Encryption Chip onboard
  • Built in LiPo Battery Charger
  • Comes fully assembled with Female Stackable Headers
