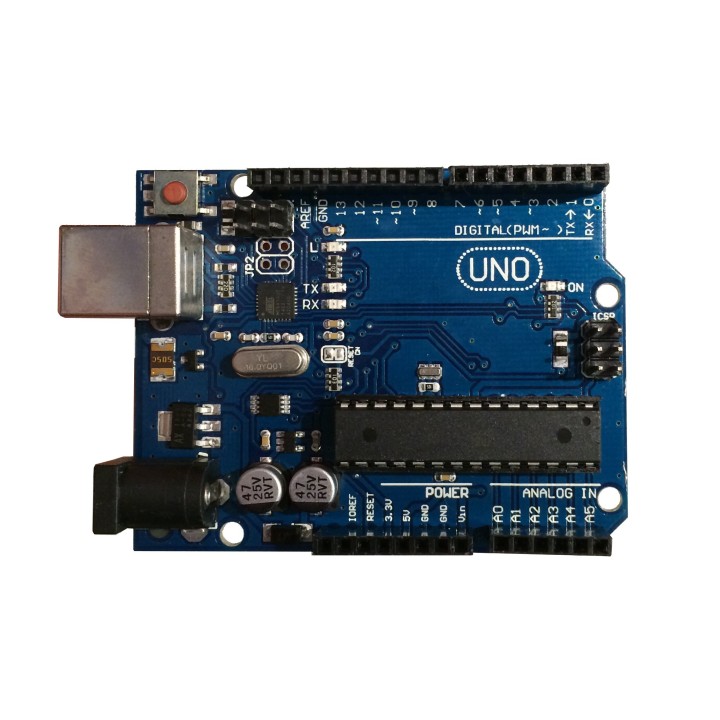

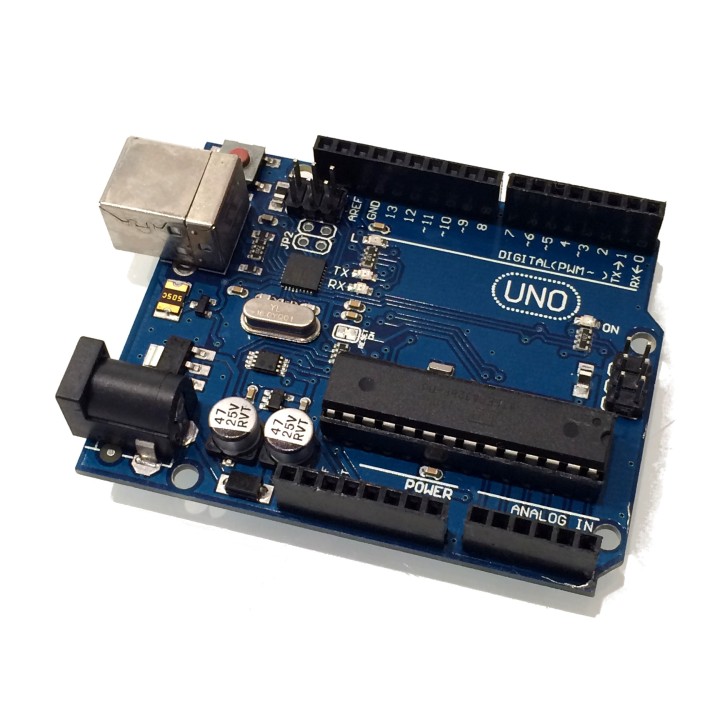

UNO R3 (Arduino Compatible)

This UNO R3 is a great budget version of the Arduino Uno R3 that is 100% compatible.

More details

Availability: SHIPS TODAY

Last Updated: 12/21/2024

Tinkersphere

TS-953

$19.99

Have a question? 1 answered questions

This UNO R3 is a great budget version of the Arduino Uno R3 that is 100% compatible. Just plug in an Arduino USB cable and program using the Arduino IDE.

Features:

  • UNO R3 Arduino Compatible Board
  • Programmable via the Arduino software interface
  • Completely Plug & Play (no additional driver install needed, just like the Arduino Uno R3)
  • Fully assembled
  • 6 Analog I/O Pins
  • 14 Digital I/O Pins (6 are PWM capable)
  • Rx and Tx Hardware Serial Connections
  • Supports unregulated Power Supplies up to 12V via the onboard DC jack. (use this 9V DC Adapter for wall powering your Arduino UNO)
  • ATmega328P running at 5V/16MHz
  • Onboard USB A port (grab an Arduino USB Cable to plug into your computer)



Specifications:

  • Main Chip: Atmega328P
  • Input Power Supply: Accepts 7V - 12V via the onboard DC jack for powering the board
  • Operating Voltage: 5V (same as all other Arduino-based boards)
  • Frequency: 16Mhz
  • Clone of the Arduino UNO and comprable to the Pro Micro Arduino Compatible Atmega328P Breakout and other Atmega328P Breakouts
  • When Programming via Arduino IDE, be sure to select board type: Arduino UNO
  • Dimensions: 2.7 in × 2.1 in (68.6 mm × 53.3 mm)
Ask the community
Do you need any extra drivers for this or does it work with just the Arduino software?
Just plug it in and it works! I love these, why pay 10 bucks more for the same exact product amiright?
Default User Icon Steve · 11/23/2019
Was this answer helpful? (2) (0)
